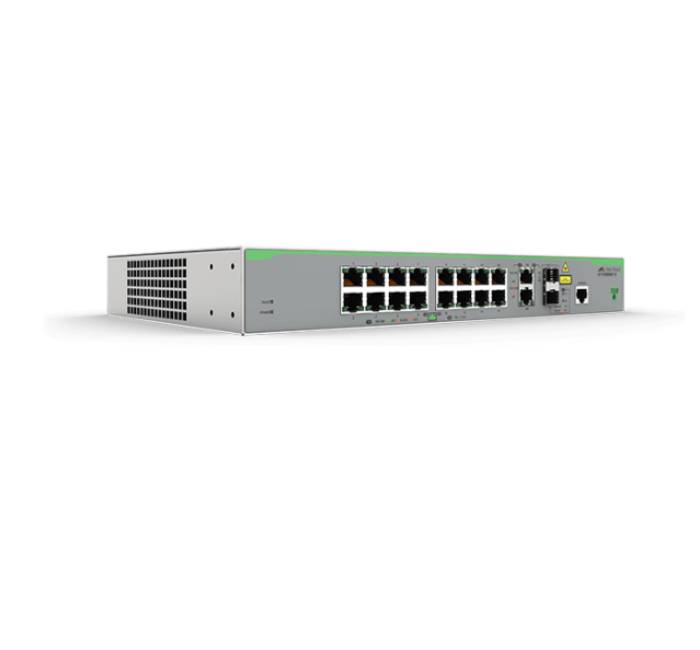

Allied Telesis AT-FS980M/18 Fast Ethernet Layer 3 Managed Switch - 5year NCA support AT-FS980M/18-NCA-5

Expected dispatch on : 0December 22 - 23

Part No AT-FS980M/18-NCA-5

The FS980M/18 features 16 x 10/100TX ports and 2 combo (10/100/1000T or 100/1000X SFP) uplink ports with 5 Year NCA Support.

The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge.

Details

Tech Specs:

Connectivity
Ports: 16, 4
Contents
Switch, power supply, documentation
General
Chassis Form Factor: 1U Rackmount
Switching fabric bandwidth: 7.2Gbps
Forwarding performance: 5.36Mbpss
Stacking bandwidth: 4Gbps
QoS hardware queues per port: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10000 bytes
Memory

RAM (installed): 128 MB, 512 MB

RAM Technology: DDR2 SDRAM, Flash
Ports/Connectors
I/O:
(16) 100Base-TX RJ-45
(2) 1000Base-T RJ-45
(2) 1000Base-X SFP
(1) RJ-45 console
(1) Power in
Internal power supply
Voltage required: 120 to 230V AC, 50 to 60Hz
Operational power consumption: 12W
