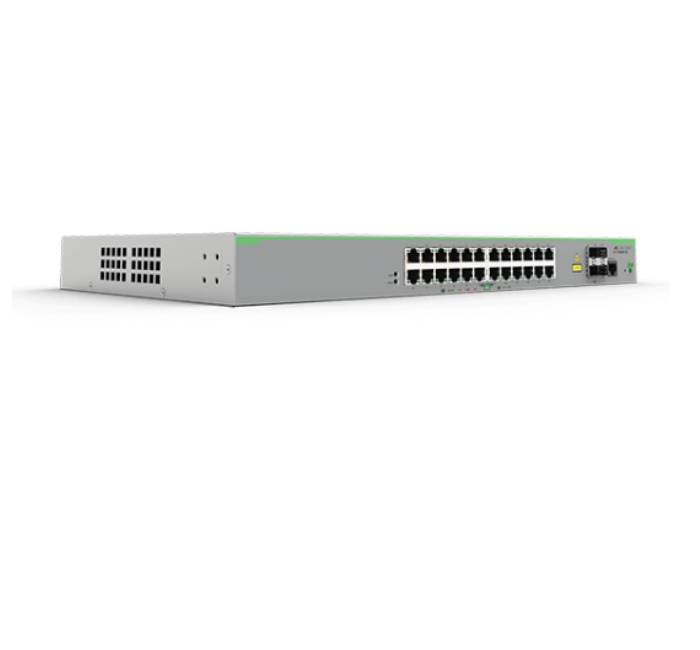

Allied Telesis AT-FS980M/28 Fast Ethernet Layer 3 Managed Switch - 5year NCA support AT-FS980M/28-NCA5

As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.

Tech Specs:

Networking

• Type :Switch
• Subcategory :Network hubs and switches
• Subtype :Fast Ethernet
• Form Factor :Rack-mountable
• Stackable :Stackable
• Ports Qty :28
• Advanced Switching :Layer 3
• Routing Protocol :CIDR, MLD, RIP-2, MLDv2, Static IPv4 routing, IGMPv3, RIP-1, IGMP, IGMPv2
• MAC Address Table Size :16K entries
• Jumbo Frame Support :10000 bytes
• Manageable :Yes
• Remote Management Protocol :RMON 9, CLI, SSH 6, SNMP 6, RMON 1, SNMP 2c, RMON 2, TFTP, SNMP 3, HTTPS, SNMP 1, Telnet, RMON 3, HTTP
• Status Indicators :Status

• Ports

  • Qty :24
  • Type :10/100

• Ports (2nd)

  • Qty :4
  • Type :1000Base-X SFP (uplink)

• Interface Provided

  • Interfaces :4 x 1000Base-X SFP uplink/stacking, 1 x console RJ-45, 24 x 100Base-TX RJ-45

• Power Device

  • Type :Internal power supply
  • Nominal Voltage :AC 120/230 V
  • Frequency Required :50/60 hertz
  • Power Consumption Operational :19 watt
