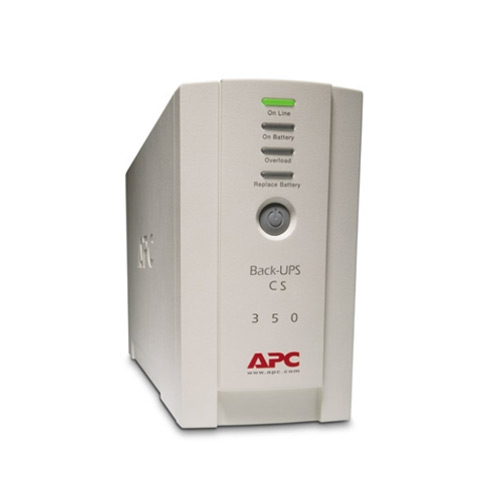

APC Back-UPS 350, 230V BK350EI
December 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 6hour(s)
Replacement Battery : RBC2
Expected Battery Life (years) : 4 - 6
RBC Quantity : 1
Battery Charge Power (Watts) : 14 Watts
Battery Volt-Amp-Hour Capacity : 116
Details
APC Back-UPS 350, 230V BK350EI
Output
Max Configurable Power (Watts) : 210 Watts / 350VA
Output Frequency (sync to mains) : 47 - 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology : Standby
Transfer Time : 6 ms typical : 10 ms maximum
Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 180 - 266V
Number of Power Cords : 2
Communications & Management
Interface Port(s) : Optional Simple Signalling RS232 cable, USB
Control panel : LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 310Joules
Data Line Protection : RJ45 analog phone line for phone/fax/modem/DSL
Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height : 165MM, 16.5CM
Maximum Width : 91MM, 9.1CM
Maximum Depth : 284MM, 28.4CM
Net Weight : 6.32KG
Color : Beige
Master Carton Units : 2.0
Units per Pallet : 48.0
SCC Codes : 10731304016349
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 15240meters
Online thermal dissipation : 19.0BTU/hr
More Information
Part No | BK350EI |
---|---|
Dimensions Length (inch) | 14.48 |
Dimensions Width (inch) | 9.48 |
Dimensions Height (inch) | 7 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 4 - 6 |
RBC Quantity | 1 |
