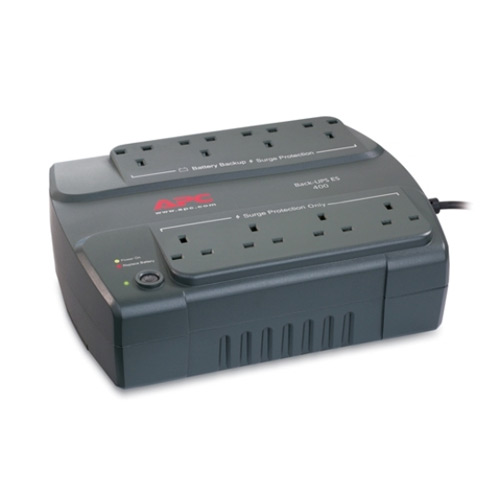

APC Back-UPS 400, 230V, BS1363 BE400-UK
December 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 16hour(s)
Expected Battery Life (years) : 2 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 6 Watts
Details
APC Back-UPS 400, 230V, BS1363 BE400-UK
Output
Max Configurable Power (Watts) : 240 Watts / 400VA
Output Frequency (sync to mains) : 47 - 63 Hz Sync to mains, 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised
Topology : Standby
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum
Input
Input frequency : 50/60 Hz
Number of Power Cords : 1
Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 310Joules
Data Line Protection : RJ11 analog phone line for phone/fax/modem/DSL, RJ45 network line - 10/100 base-T Ethernet
Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height : 86MM, 8.6CM
Maximum Width : 230MM, 23.0CM
Maximum Depth : 285MM, 28.5CM
Net Weight : 5.4KG
Shipping weight : 5.6KG
Shipping Height : 132MM, 13.2CM
Shipping Width : 300MM, 30.0CM
Shipping Depth : 366MM, 36.6CM
Color : Charcoal
Master Carton Dimensions (Length x Width x Height) : 381MM
Master Carton Units : 2.0
Master Carton Weight : 12.17
Units per Pallet : 48.0
SCC Codes : 10731304233401
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 15240meters
Storage Temperature : 0 - 40 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 45.0dBA
More Information
Part No | BE400-UK |
---|---|
Dimensions Length (inch) | 14.40 |
Dimensions Width (inch) | 11.81 |
Dimensions Height (inch) | 5.19 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 2 - 5 |
RBC Quantity | 1 |
