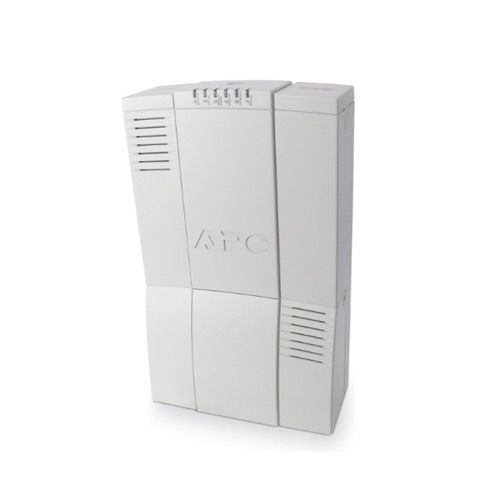

APC Back-UPS 500 Structured Wiring UPS, 230V BH500INET

APC by Schneider Electric
Expected dispatch on : 0December 22 - 23
Part No BH500INET

Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Replacement Battery : RBC2
Expected Battery Life (years) : 4 - 6
RBC Quantity : 1
Battery Charge Power (Watts) : 10 Watts

Quote

Details


APC Back-UPS 500 Structured Wiring UPS, 230V BH500INET

Output
Max Configurable Power (Watts) : 300 Watts / 500VA
Output Frequency (sync to mains) : 47 - 63 Hz Sync to mains
Topology : Standby
Waveform type : Stepped approximation to a sinewave

Input
Input frequency : 47 - 63 Hz
Number of Power Cords : 1

Communications & Management
Control panel : LED status display with on line : on battery : replace battery and building wiring fault, Network link status LED
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating : 600Joules
Data Line Protection : Coaxial cable for CATV/SATV/modem/audio-video, RJ11 analog phone line for phone/fax/modem/DSL, RJ45 network line - 10/100 base-T Ethernet

Physical
Maximum Height : 372MM, 37.2CM
Maximum Width : 225MM, 22.5CM
Maximum Depth : 105MM, 10.5CM
Net Weight : 7.42KG
Color : Beige
Master Carton Dimensions (Length x Width x Height) : 476MM
Master Carton Units : 1.0
Master Carton Weight : 16.81
Units per Pallet : 48.0
SCC Codes : 10731304206412

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 5 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 40.0dBA


More Information


More Information
Part No BH500INET
Dimensions Length (inch) 6.5
Dimensions Width (inch) 12
Dimensions Height (inch) 18.5
Country of Manufacture China
Brand APC by Schneider Electric
Battery Type Lead-acid
Battery Life 4 - 6
RBC Quantity 1
