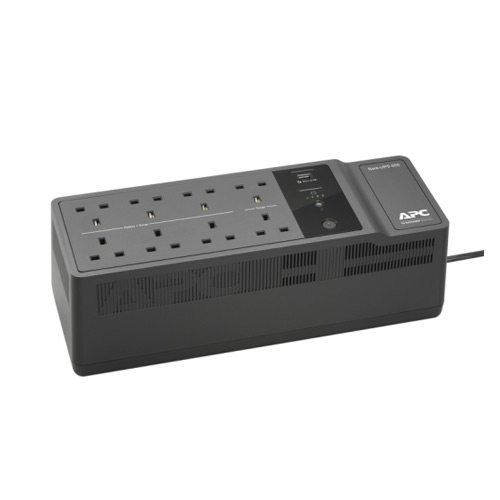

APC Back-UPS 650VA, 230V, 1 USB charging port BE650G2-UK
November 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 16hour(s)
Expected Battery Life (years) : 2 - 5
Battery Charge Power (Watts) : 5 Watts
Details
APC Back-UPS 650VA, 230V, 1 USB charging port BE650G2-UK
Output
Max Configurable Power (Watts) : 400 Watts / 650VA
Efficiency at Full Load : 80.0 %
Output Frequency (sync to mains) : 47 - 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Other Output Voltages : 220
Topology : Standby
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum
Input
Input frequency : 47 - 63 Hz
Input voltage range for main operations : 180 - 266V
Efficiency at Full Load : 80.0 %
Communications & Management
Interface Port(s) : USB
Control panel : LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 310Joules
Data Line Protection : RJ45 analog phone line for phone/fax/modem/DSL, RJ45 network line - 10/100 base-T Ethernet
Physical
Maximum Height : 120MM, 12.0CM
Maximum Width : 130MM, 13.0CM
Maximum Depth : 365MM, 36.5CM
Net Weight : 4.0KG
Shipping weight : 4.5KG
Shipping Height : 190MM, 19.0CM
Shipping Width : 186MM, 18.6CM
Shipping Depth : 441MM, 44.1CM
Color : Black
Master Carton Dimensions (Length x Width x Height) : 559 x 457 x 203MM
Master Carton Weight : 14.5
SCC Codes : 10731304347252
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 90 %
Operating Elevation : 0 - 914.4meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 4572meters
Audible noise at 1 meter from surface of unit : 45.0dBA
More Information
Part No | BE650G2-UK |
---|---|
Dimensions Length (inch) | 17.36 |
Dimensions Width (inch) | 7.32 |
Dimensions Height (inch) | 7.48 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 2 - 5 |
