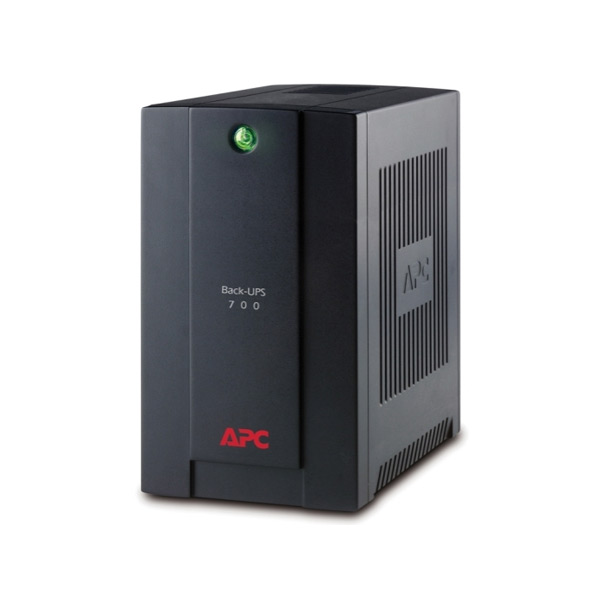

APC Back-UPS 700VA, 230V, AVR, IEC Sockets BX700UI
December 31 - 01
Battery type : Lead-acid battery
Typical recharge time : 6hour(s)
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 14 Watts
Battery Volt-Amp-Hour Capacity : 81
Details
APC Back-UPS 700VA, 230V, AVR, IEC Sockets BX700UI
Output
Max Configurable Power (Watts) : 390 Watts / 700VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 4 ms typical
Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 140 - 300V
Number of Power Cords : 1
Communications & Management
Interface Port(s) : USB
Control panel : LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 273Joules
Data Line Protection : RJ11 modem/fax/DSL protection (two wire single line)
Physical
Maximum Height : 200MM, 20.0CM
Maximum Width : 115MM, 11.5CM
Maximum Depth : 256MM, 25.6CM
Net Weight : 6.0KG
SCC Codes : 10731304315800
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 9144meters
Audible noise at 1 meter from surface of unit : 45.0dBA
More Information
Part No | BX700UI |
---|---|
Dimensions Length (inch) | 13.38 |
Dimensions Width (inch) | 11.61 |
Dimensions Height (inch) | 10.82 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
RBC Quantity | 1 |
