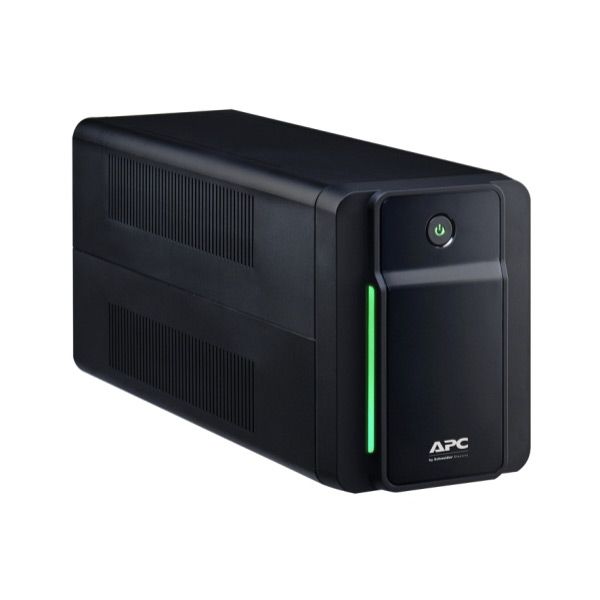

APC Back-UPS 750VA, 230V, AVR, IEC Sockets BX750MI

APC by Schneider Electric
Expected dispatch on : 0December 22 - 23
Part No BX750MI

Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Replacement Battery : RBC17
Expected Battery Life (years) : 3 - 5

Quote

Details


APC Back-UPS 750VA, 230V, AVR, IEC Sockets BX750MI

Output
Max Configurable Power (Watts) : 410 Watts / 750VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum

Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 140 - 300V
Number of Power Cords : 1
Input Power Factor at Full Load : 0.63

Communications & Management
Interface Port(s) : USB
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering
Surge energy rating : 273Joules
Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection

Physical
Maximum Height : 160MM, 16.0CM
Maximum Width : 120MM, 12.0CM
Maximum Depth : 355MM, 35.5CM
Net Weight : 5.4KG
Shipping weight : 5.9KG
Shipping Height : 250MM, 25.0CM
Shipping Width : 197MM, 19.7CM
Shipping Depth : 430MM, 43.0CM
Color : Black
SCC Codes : 10731304410796

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20


More Information


More Information
Part No BX750MI
Country of Manufacture China
Brand APC by Schneider Electric
Battery Type Lead-acid
Battery Life 3 - 5
