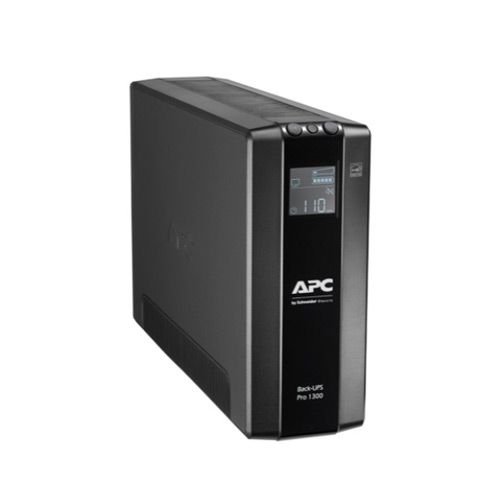

APC Back UPS Pro BR 1300VA, 8 Outlets, AVR, LCD Interface BR1300MI

APC by Schneider Electric
Expected dispatch on : 0December 22 - 23
Part No BR1300MI

Battery type : Lead-acid battery
Typical recharge time : 16hour(s)
Replacement Battery : APCRBC165
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 11 Watts

Quote

Details


APC Back UPS Pro BR 1300VA, 8 Outlets, AVR, LCD Interface BR1300MI

Output
Max Configurable Power (Watts) : 780 Watts / 1.3kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive

Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 176 - 294V

Communications & Management
Interface Port(s) : USB
Control panel : Multifunction LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating : 509Joules
Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
Filtering : Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical
Maximum Height : 100MM, 10.0CM
Maximum Width : 250MM, 25.0CM
Maximum Depth : 382MM, 38.2CM
Net Weight : 10.2KG
Color : Black
Master Carton Dimensions (Length x Width x Height) : 356 x 51 x 254MM
Master Carton Units : 1.0
Master Carton Weight : 12.7
SCC Codes : 10731304346903

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Online thermal dissipation : 22.0BTU/hr


More Information


More Information
Part No BR1300MI
Dimensions Length (inch) 8.85
Dimensions Width (inch) 19.09
Dimensions Height (inch) 12.99
Country of Manufacture China
Brand APC by Schneider Electric
Battery Type Lead-acid
Battery Life 3 - 5
RBC Quantity 1
