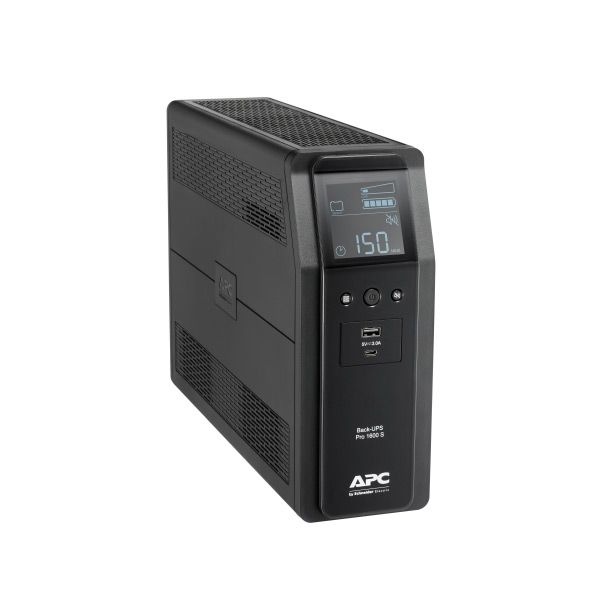

APC Back UPS Pro BR 1600VA, Sinewave,8 Outlets, AVR, LCD interface BR1600SI
December 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 16hour(s)
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 16 Watts
Details
APC Back UPS Pro BR 1600VA, Sinewave,8 Outlets, AVR, LCD interface BR1600SI
Output
Max Configurable Power (Watts) : 960 Watts / 1.6kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 176 - 294V
Communications & Management
Interface Port(s) : USB
Control panel : Multifunction LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 509Joules
Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
Filtering : Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height : 260MM, 26.0CM
Maximum Width : 100MM, 10.0CM
Maximum Depth : 368MM, 36.8CM
Net Weight : 12.1KG
Color : Black
Master Carton Dimensions (Length x Width x Height) : 381 x 483 x 229MM
Master Carton Units : 1.0
Master Carton Weight : 14.61
SCC Codes : 10731304346927
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Online thermal dissipation : 20.0BTU/hr
More Information
Part No | BR1600SI |
---|---|
Dimensions Length (inch) | 18.97 |
Dimensions Width (inch) | 8.77 |
Dimensions Height (inch) | 14.13 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
RBC Quantity | 1 |
