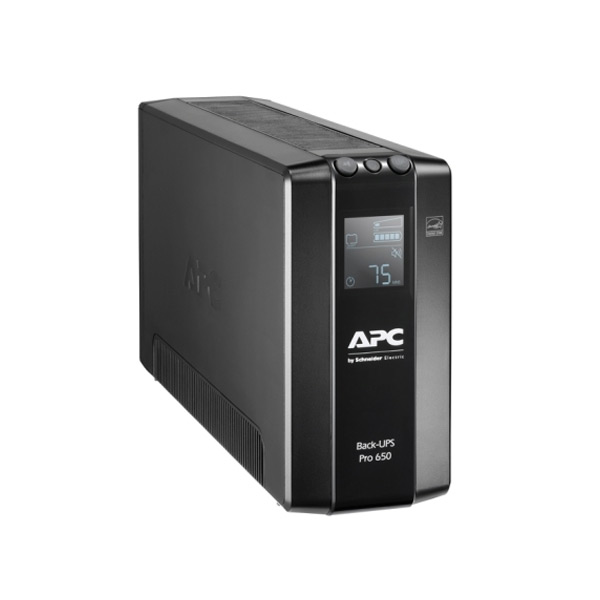

APC Back UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface BR650MI
December 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 12hour(s)
Replacement Battery : APCRBC110
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 6 Watts
Details
APC Back UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface BR650MI
Output
Max Configurable Power (Watts) : 390 Watts / 650VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 10 ms typical : 12 ms maximum
Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 176 - 294V
Communications & Management
Interface Port(s) : USB
Control panel : Multifunction LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Data Line Protection : RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering : Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height : 190MM, 19.0CM
Maximum Width : 91MM, 9.1CM
Maximum Depth : 310MM, 31.0CM
Net Weight : 6.4KG
Master Carton Dimensions (Length x Width x Height) : 279 x 457 x 229MM
Master Carton Units : 2.0
Master Carton Weight : 15.65
SCC Codes : 10731304346934
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Online thermal dissipation : 13.0BTU/hr
More Information
Part No | BR650MI |
---|---|
Dimensions Length (inch) | 5.62 |
Dimensions Width (inch) | 17.32 |
Dimensions Height (inch) | 10.03 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
RBC Quantity | 1 |
