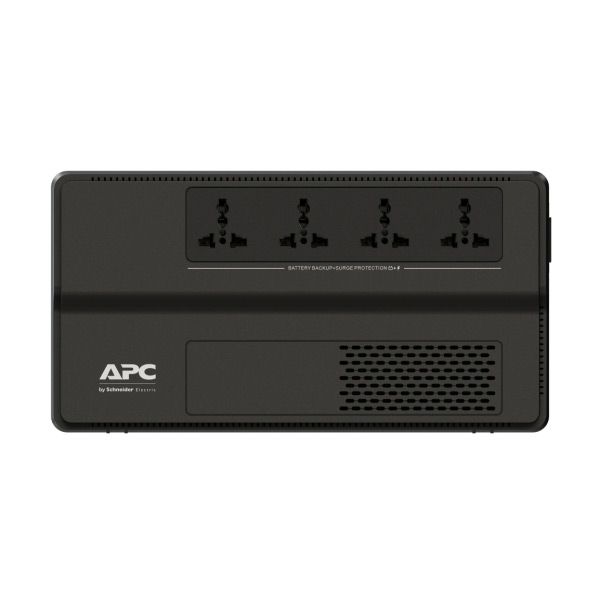

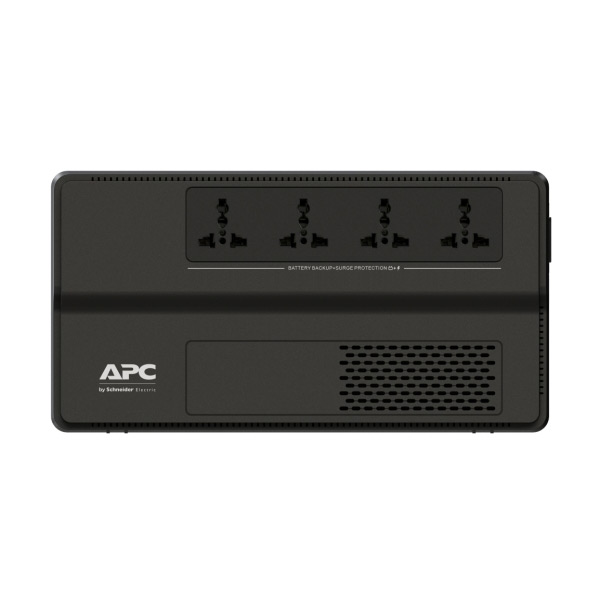

APC EASY UPS BV 800VA, AVR, Universal Outlet, 230V BV800I-MS
December 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Expected Battery Life (years) : 3 - 5
Details
APC EASY UPS BV 800VA, AVR, Universal Outlet, 230V BV800I-MS
Output
Max Configurable Power (Watts) : 450 Watts / 800VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Unsynchronised
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum
Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 170 - 280V
Number of Power Cords : 1
Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 156Joules
Physical
Maximum Height : 93MM, 9.25CM
Maximum Width : 161MM, 16.05CM
Maximum Depth : 305MM, 30.5CM
Net Weight : 5.3KG
Color : Black
SCC Codes : 10731304338373
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 90 %
Operating Elevation : 0 - 2032.1meters
Storage Temperature : -20 - 50 °C
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20
More Information
Part No | BV800I-MS |
---|---|
Dimensions Length (inch) | 14.68 |
Dimensions Width (inch) | 5.62 |
Dimensions Height (inch) | 9.33 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
