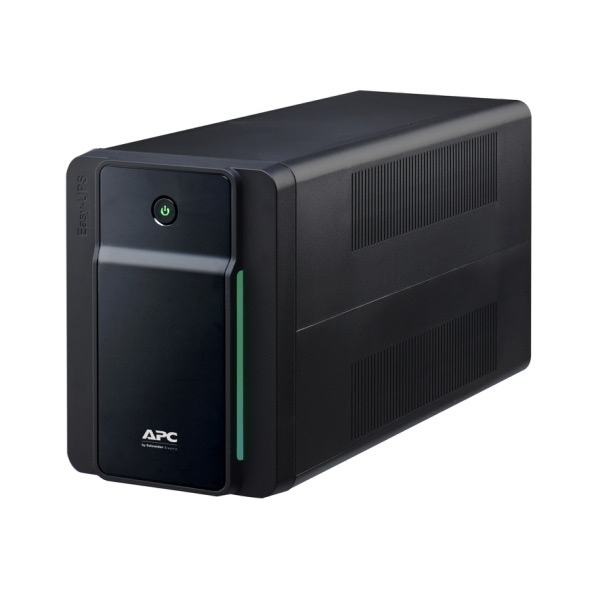

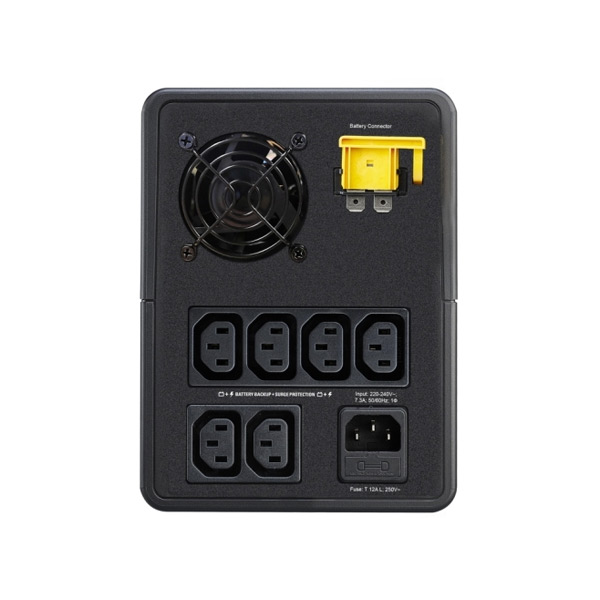

APC Easy UPS BVX 1600VA, 230V, AVR, IEC Sockets BVX1600LI
December 30 - 31
Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Nominal Battery Voltage : 12 V
Expected Battery Life (years) : 3 - 5
Battery Volt-Amp-Hour Capacity : 168
Details
APC Easy UPS BVX 1600VA, 230V, AVR, IEC Sockets BVX1600LI
Output
Max Configurable Power (Watts) : 900 Watts / 1.6kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum
Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 140 - 300 (230 V) ACV
Number of Power Cords : 1
Input Power Factor at Full Load : 0.56
Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating : 273Joules
Physical
Maximum Height : 190MM, 19.0CM
Maximum Width : 140MM, 14.0CM
Maximum Depth : 390MM, 39.0CM
Net Weight : 10.2KG
Color : Black
SCC Codes : 10731304404511
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20
More Information
Part No | BVX1600LI |
---|---|
Dimensions Length (inch) | 19.48 |
Dimensions Width (inch) | 9.25 |
Dimensions Height (inch) | 11.69 |
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
