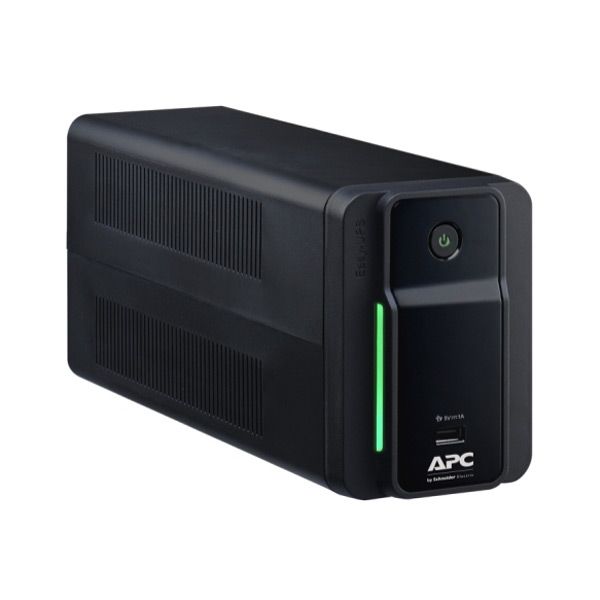

APC Easy UPS BVX 700VA, 230V, AVR, USB Charging, IEC Sockets BVX700LUI

APC by Schneider Electric
Expected dispatch on : 0November 22 - 23
Part No BVX700LUI

Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Nominal Battery Voltage : 12 V
Replacement Battery : APCRBC110
Expected Battery Life (years) : 3 - 5

Quote

Details


APC Easy UPS BVX 700VA, 230V, AVR, USB Charging, IEC Sockets BVX700LUI

Output
Max Configurable Power (Watts) : 360 Watts / 700VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum

Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 170 - 280 (230 V) ACV
Number of Power Cords : 1
Input Power Factor at Full Load : 0.51

Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering
Surge energy rating : 273Joules

Physical
Maximum Height : 138MM, 13.8CM
Maximum Width : 98MM, 9.8CM
Maximum Depth : 310MM, 31.0CM
Net Weight : 4.2KG
Shipping weight : 4.5KG
Shipping Height : 222MM, 22.2CM
Shipping Width : 142MM, 14.2CM
Shipping Depth : 346MM, 34.6CM
Color : Black
SCC Codes : 10731304417627

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20


More Information


More Information
Part No BVX700LUI
Country of Manufacture China
Brand APC by Schneider Electric
Battery Type Lead-acid
Battery Life 3 - 5
