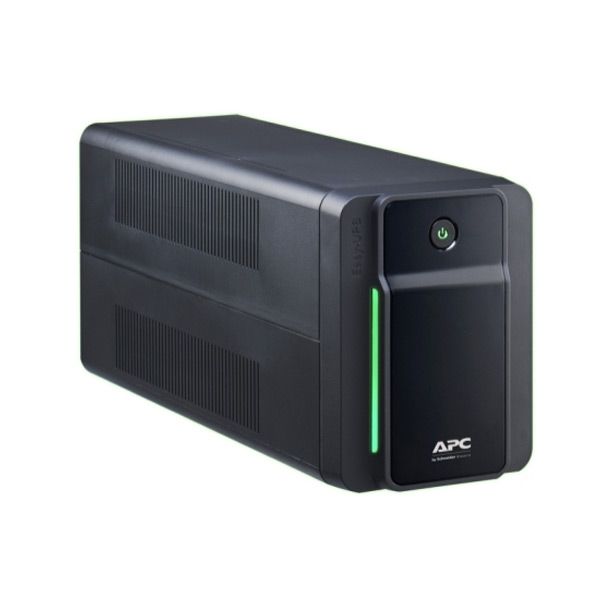

APC Easy UPS BVX 900VA, 230V, AVR, IEC Sockets BVX900LI
December 22 - 23
Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Nominal Battery Voltage : 12 V
Replacement Battery : RBC17
Expected Battery Life (years) : 3 - 5
Battery Volt-Amp-Hour Capacity : 108
Details
APC Easy UPS BVX 900VA, 230V, AVR, IEC Sockets BVX900LI
Output
Max Configurable Power (Watts) : 480 Watts / 900VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum
Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 140 - 300 (230 V) ACV
Number of Power Cords : 1
Input Power Factor at Full Load : 0.53
Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating : 273Joules
Physical
Maximum Height : 160MM, 16.0CM
Maximum Width : 120MM, 12.0CM
Maximum Depth : 355MM, 35.5CM
Net Weight : 6.0KG
Shipping weight : 6.5KG
Shipping Height : 250MM, 25.0CM
Shipping Width : 197MM, 19.7CM
Shipping Depth : 430MM, 43.0CM
Color : Black
SCC Codes : 10731304404498
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20
More Information
Part No | BVX900LI |
---|---|
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
