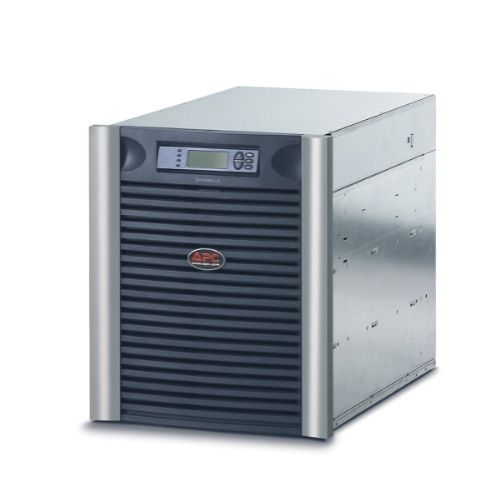

APC Symmetra LX 8kVA Scalable to N+1 Rack-mount, 220/230/240V or 380/400/415V SYA8K8RMI

Output
Max Configurable Power (Watts) : 5.6kWatts / 8.0kVA
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load : 90.0 %
Output Voltage Distortion : Less than 5 % at full load
Output Frequency (sync to mains) : 47 - 63 Hz Sync to mains, 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronised
Other Output Voltages : 220, 240
Load Crest Factor : Up to 5 : 1
Topology : Double conversion online
Waveform type : Sine wave
Maximum Output Current : 36
Bypass : Internal bypass (automatic and manual)

Input
Input frequency : 45 - 65 Hz Auto-sensing
Input voltage range for main operations : 155 - 276, 290 - 480 3:1V
Efficiency at Full Load : 90.0 %
Input Total Harmonic Distortion : Less than 7 % for full load
Other Input Voltages : 220, 240, 380, 415
Input Power Factor at Full Load : 0.98

Communications & Management
Interface Port(s) : DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Pre-Installed SmartSlot™ Cards : AP9631
Control panel : Multifunction LCD status and control console
Audible Alarm : Audible and visible alarms prioritized by severity
Emergency Power Off (EPO) : Yes
Available SmartSlot™ Interface Quantity : 1

Physical
Maximum Height : 572MM, 57.2CM
Maximum Width : 472MM, 47.2CM
Maximum Depth : 688MM, 68.8CM
Net Weight : 178.18KG
Color : Black, Silver
Units per Pallet : 1.0

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 4572meters
Audible noise at 1 meter from surface of unit : 62.0dBA
Online thermal dissipation : 2762.0BTU/hr
