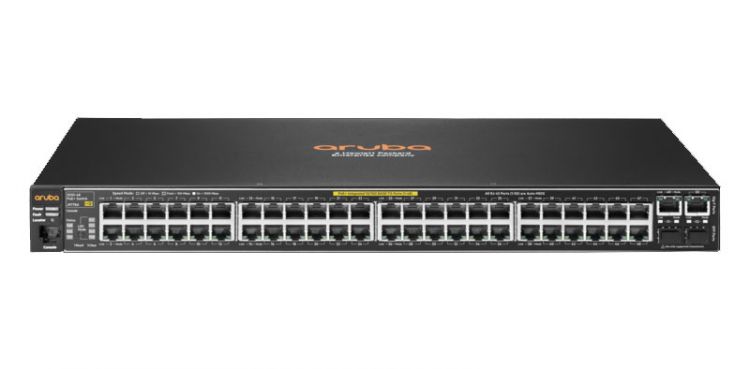

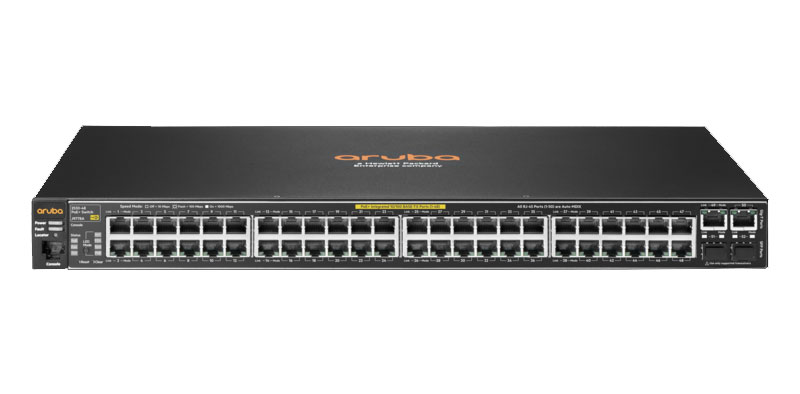

Aruba J9778A 2530 48 PoE+ Switch

Product Differentiator (long) High density fully managed 48 port Fast Ethernet PoE+ access switch with Gigabit uplinks. This model has 48x 10/100 PoE+ ports with a power budget of 382W. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.

Power Consumption Description 441 W (maximum)

Heat Dissipation 170 BTU/hr (179.35 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (48) RJ-45 autosensing 10/100 PoE+ ports (2) autosensing 10/100/1000 ports (2) fixed Gigabit Ethernet SFP ports

Latency 100 Mb Latency: < 6.6 µs 1000 Mb Latency: < 2.2 µs

Switching Capacity 17.6 Gbps

Stacking Capabilities Virtual 16 switches

Throughput up to 13 Mpps

Memory and Processor ARM9E @ 800 MHz 128 MB flash Packet buffer size: 3 MB dynamically allocated 256 MB DDR3 DIMM

PoE Capability 382 W

Management Features Aruba Central and Aruba AirWave Network Management IMC—Intelligent Management Center command-line interface Web browser configuration menu out-of-band management (serial RS-232C or Micro USB) IEEE 802.3 Ethernet MIB Repeater MIB Ethernet Interface MIB AirWave Network Management

Detailed Product Description Aruba 2530 switch with 48 Power-over-Ethernet-plus ports, 2 SFP ports and 2 1GbE ports
