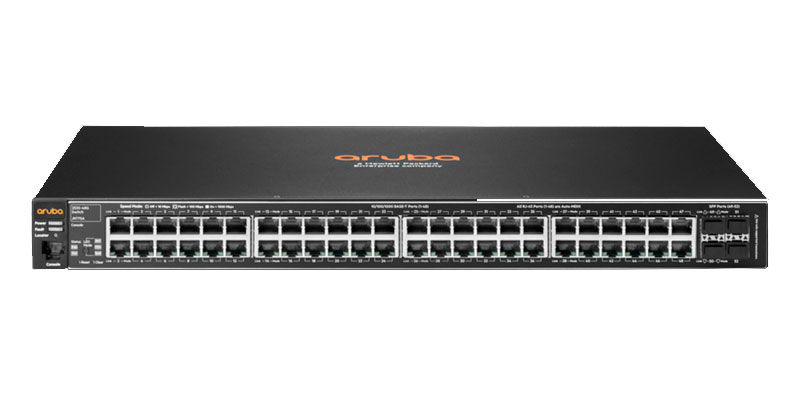

Aruba J9775A 2530 48G Switch

Product Differentiator (long) Cost-effective 52-port fully managed Gigabit Layer 2 switch. This model has 48x 10/100/1000 ports and four Gigabit SFP ports.

Power Consumption Description 59.5 W (maximum)

Heat Dissipation 203 BTU/hr (214.17 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (48) RJ-45 autosensing 10/100/1000 ports (4) fixed Gigabit Ethernet SFP ports

Latency 100 Mb Latency: < 7.4 µs 1000 Mb Latency: < 2.3 µs

Switching Capacity 104 Gbps

Stacking Capabilities Virtual 16 switches

Throughput up to 77.3 Mpps

Memory and Processor ARM9E @ 800 MHz 128 MB flash Packet buffer size: 3 MB dynamically allocated 256 MB DDR3 DIMM

Management Features Aruba Central and Aruba AirWave Network Management IMC—Intelligent Management Center command-line interface Web browser configuration menu out-of-band management (serial RS-232C or Micro USB) IEEE 802.3 Ethernet MIB Repeater MIB Ethernet Interface MIB AirWave Network Management

Detailed Product Description Aruba 2530 switch with 48 1GbE ports and 4 SFP ports
