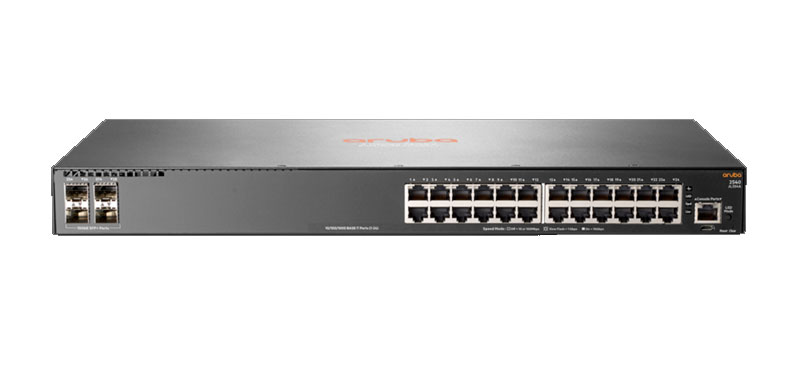

Aruba JL354A 2540 24G 4SFP+ Switch

Product Differentiator (long) 28-port lite Layer 3 fully managed, cloud-capable Gigabit access. This model has 24x 10/100/1000 Gigabit ports and four 10 Gigabit SFP+ ports for high speed connectivity.

Power Consumption Description 29.3 W (maximum)

Heat Dissipation 100 BTU/hr (105.5 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (24) RJ-45 autosensing 10/100/1000 ports (4) SFP+ 1/10GbE ports PHY-less

Latency 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs

Switching Capacity 128 Gbps

Throughput up to 95.2 Mpps

Memory and Processor Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC

Management Features Aruba AirWave Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
