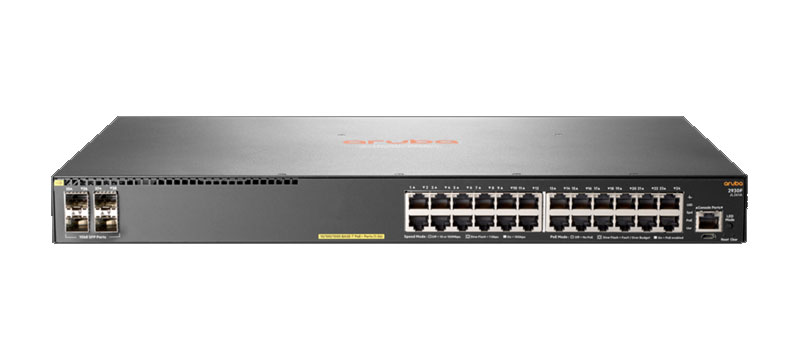

Aruba JL261A 2930F 24G PoE 4SFP Switch

Product Differentiator (long) Popular Aruba 28-port Gig access switch with 370 Watts PoE+ power. This model has 24x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

Power Consumption Description 445 W (maximum)

Heat Dissipation 258 BTU/hr (272.2 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP

Latency 1000 Mb Latency: < 3.8 µs

Switching Capacity 56 Gbps

Throughput up to 41.7 Mpps

Memory and Processor Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC

PoE Capability 370 W PoE+

Management Features Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
