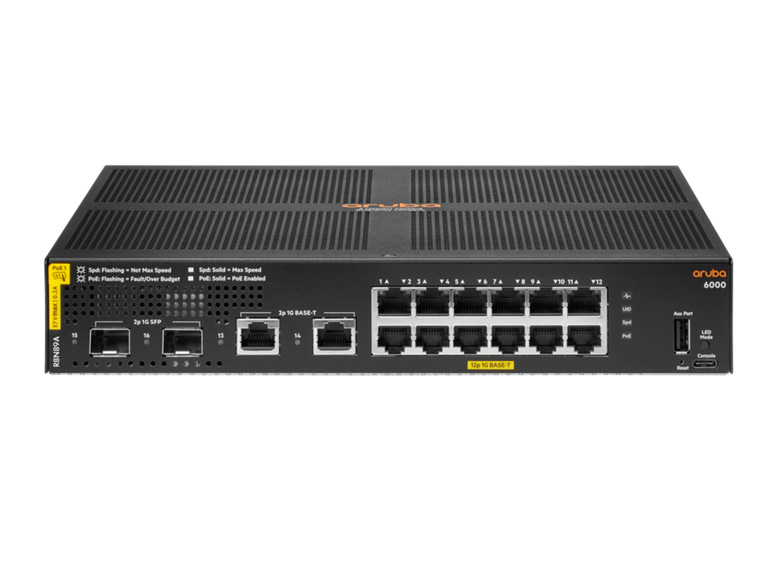

Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch

Expected dispatch on : June 02 - 03

Part No R8N89A

Power consumptionMax Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Input voltage100-127 VAC / 200-240 VAC
Ports12x ports 10/100/1000BASE-T Ports 2x 1G SFP ports 2x 1GbE ports
Latency1 Gbps: 2.3 μSec
Routing capabilitiesStatic
Switching capacity32 Gbps
Throughput23.8 Mpps

Quote

Details

Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that provides entry level, reliable, and convenient wired access connectivity.
Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of access points, client, and IoT devices.
Compact and fanless 12 port PoE model for space-constrained deployments.
Flexibility to manage with Aruba Central1, easy to use Web GUI, CLI, or Aruba NetEdit.
Software defined ready with REST APIs.
HPE Limited Lifetime Warranty with no switch software licensing required.

More Information

More Information
Part No	R8N89A
Dimensions Length (inch)	10.4
Dimensions Width (inch)	10.0
Dimensions Height (inch)	1.73
Brand	Aruba Networks
Ports	12x ports 10/100/1000BASE-T Ports 2x 1G SFP ports 2x 1GbE ports
PoE Capability	139W Class 4 PoE/PoE+
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
Throughput	23.8 Mpps
Switching Capacity	32 Gbps
Voltage	100-127 VAC / 200-240 VAC
