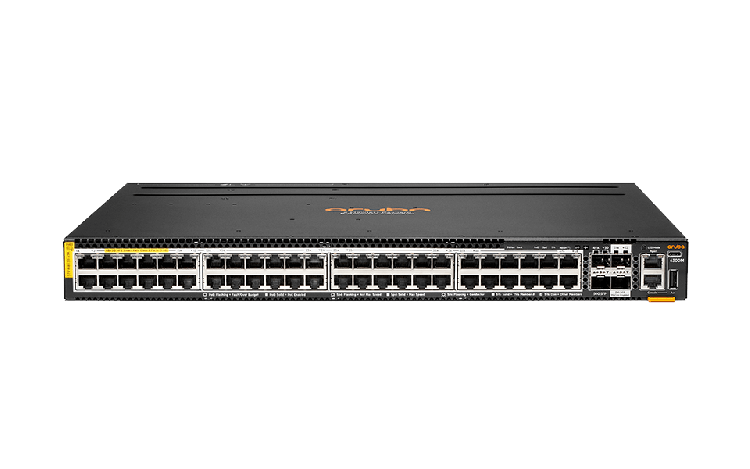

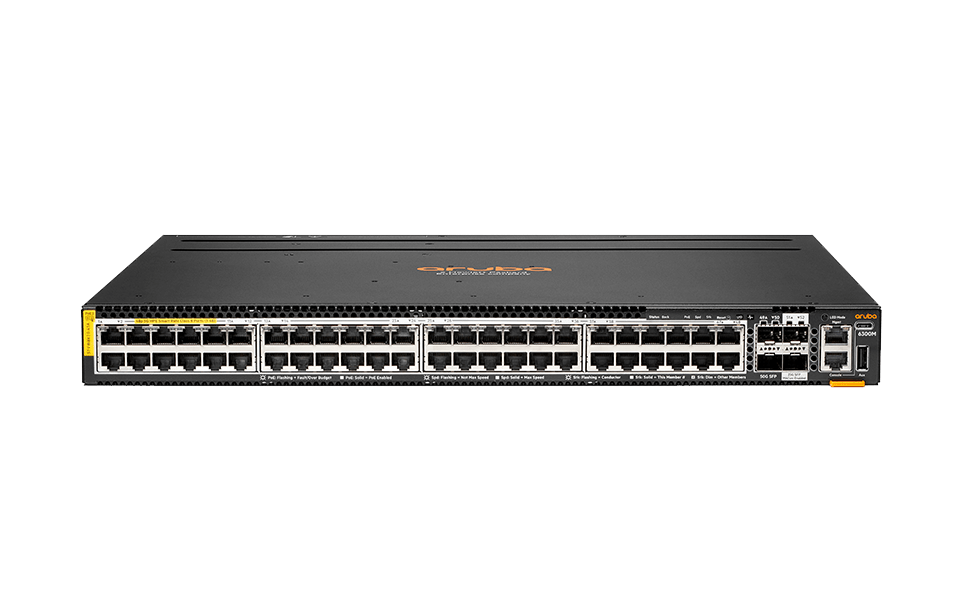

Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch R8S90A

Be the first to review this product

Expected dispatch on : 0December 28 - 29

Part No R8S90A

Versatile switches ready for cloud, mobile, and IoT
Created for game-changing operational efficiency with built-in security and resiliency, the CX 6300 switches provide the foundation for high-performance networks.
Layer 3 switching
Stackable switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS.
Scalable, always on performance
High-performance 880 Gbps system switching capacity, 660 MPPS of system throughput, and redundant, hot swappable power supplies and fans.
Speed and power for users and IoT
Convenient built-in wire speed 10/25/50GbE uplinks, high-density SFP+, and choice of HPE Smart Rate multi-gig with 90W PoE on every port.

Quote

Details

Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch R8S90A

Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch (R8S90A):

48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
2x 1/10/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2x 10G/25G SFP ports (MACSEC)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Two field-replaceable, hot-swappable fan trays (included), no empty slot

Management ports:

1x USB-C Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle for use with Aruba CX Mobile App

More Information

More Information
Part No	R8S90A
GTIN-/EAN-Code	0190017538679
UPC	190017538679
Dimensions Length (inch)	15.2
Dimensions Width (inch)	17.4
Dimensions Height (inch)	1.73
Brand	Aruba Networks
Switches	PoE
Ports	48
