Aruba CX 6000 Switch Series

Be the first to review this product

Expected dispatch on : February 16 - 17

Part No Aruba CX 6000 Switch Series

Ideal for branch offices, mid-market enterprises, and SMB networks

Entry-level gigabit Ethernet access switches that you can depend on for simple, reliable, and secure connectivity.

Enterprise-class Ethernet Layer 2 connectivity

This high-performance Layer 2 switch with support for ACLs, robust QoS, static routing, and IPv6 is ready to connect users and devices.

PoE and built-in uplinks

Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices and wireless access points.

Quiet and compact 12 port

Fanless 12-port model with four 1GbE uplinks and 139W of PoE is ready for quiet deployment in space constrained areas.

Management flexibility

The fully programmable CX 6000 series supports a choice of management, including cloud-based and on-prem Central (support coming soon), NetEdit, CLI, switch Web GUI, and programmability with AOS-CX operating system and REST APIs.

Built-in security

Integrated trusted platform module (TPM) ensures boot process starts with trusted AOS-CX switches.

Lasting value

Brings lasting value and simplifies ownership with no switch software licensing and Limited Lifetime Warranty.

Quote

Details

Aruba CX 6000 Switch Series

Specifications

Performance

System Switching Capacity: Up to 176 Gbps
System Throughput Capacity: Up to 98.6 Mpps

Models

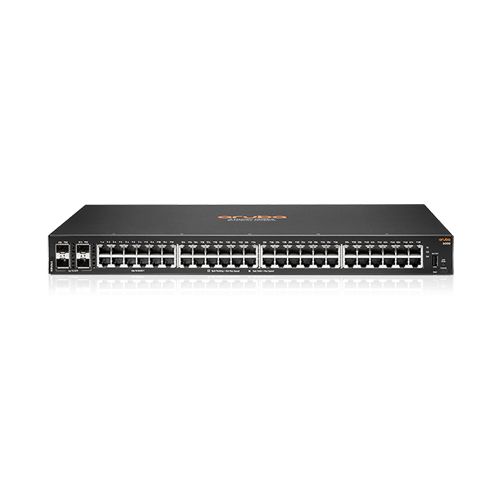

Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
48x ports 10/100/1000Base-T ports
4x 1/10G SFP ports
Internal (fixed) power supply, fixed fans
Up to 370W of Class 4 PoE
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 30.48 cm (1.73″ x 17.4″ x 12.0″)
Weight: 5.02 kg (11.07 lbs)

Aruba 6100 48G 4SFP+ Switch (JL676A)
48x ports 10/100/1000Base-T ports
4x 1/10G SFP ports
Internal (fixed) power supply, fixed fans
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 24.74 cm (1.73″ x 4″ x 9.74″)
Weight: 3.42 kg (7.54 lbs)

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
24x ports 10/100/1000Base-T ports
4x 1/10G SFP ports
Internal (fixed) power supply, fixed fans
Up to 370W of Class 4 PoE
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 26.82 cm (1.73″ x 4″ x 10.56″)
Weight: 4.19kg (9.24 lbs)

Aruba 6100 24G 4SFP+ Switch (JL678A)
24x ports 10/100/1000Base-T ports
4x 1/10G SFP ports
Internal (fixed) power supply, fixed fans
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 20.12 cm (1.73″ x 4″ x 7.92″)
Weight: 2.62 kg (5.78 lbs)

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
12x ports 10/100/1000Base-T ports
2x 1/10G SFP ports
2x 1G ports
Internal (fixed) power supply, fanless
Up to 139W of Class 4 PoE
Dimensions: (H) 4.39 cm x (W) 25.4 cm x (D) 25.5 cm (1.73″ x 0″ x 10.04″)
Weight: 2.78 kg (6.13 lbs)

Management ports

1x USB-C Console Port
1x USB Type-A Host port

POE power

370W of Class 4: JL675A, JL677A
139W of Class 4: JL679A

Mounting

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Environmental

Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1°C degree C for every 1,000 ft. from 5,000 ft. to 10,000 ft.
Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing
Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft.
Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing
Operating Altitude: 10,000 feet (3.04 km)
Max Non-operating Altitude: 15,000 feet (4.6 km)
Acoustics:
Sound Power (LWAd) range: 0 – 4.3 Bel
Sound Pressure (LpAm) (Bystander) range: 0 – 29.8 dB
Primary airflow: Side to side (JL679A fanless)

Electrical characteristics

Frequency range: 50-60 Hz
AC Voltage: 100-240 volts
Maximum current range: 4.91A – 0.5A

Safety

EN 60950-1/IEC 60950-1
EN 60825
CAN/CSA C22.2 No. 60950, 2nd Edition
UL 60950-1, 2nd Edition

Emissions

FCC Class A
VCCI Class A
EN 55022/CISPR 22 Class A

Immunity

Generic: EN 55024, CISPR 24
EN: EN 55024, CISPR 24
ESD: IEC 61000-4-2
Radiated Immunity: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge: IEC 61000-4-5
Conducted Immunity: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: IEC/EN 61000-3-2
Flicker: IEC/EN 61000-3-3
