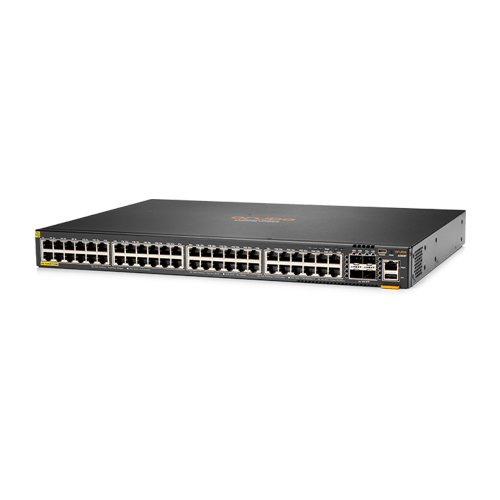

Aruba CX 6200 Switch Series

Expected dispatch on : February 16 - 17

Part No Aruba CX 6200 Switch Series

An enterprise-class access layer solution that’s simple and secure

This cloud-manageable, stackable access switch series is ideal for enterprise branch offices and campus networks, as well as SMBs.

Enterprise-class connectivity

Supports ACLs, robust QoS, and common protocols such as static and Access OSPF routing.

Power and speed for users and IoT

Built-in 1/10GbE uplinks and up to 740W of Class 4 PoE offers enterprise-class connectivity for all environments.

Scalable growth made simple

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network to eight members in a single stack using high-performance built-in 10G SFP ports.

Management flexibility

The fully programmable CX 6200 series supports a choice of management, including cloud-based and on-prem Central, CLI, switch Web GUI and programmability with AOS-CX operating system, and REST APIs.

Quote

Details

Aruba CX 6200 Switch Series

Specifications

Performance

System Switching Capacity: 176 Gbps
System Throughput Capacity: Up to 130.9 Mpps
Stack Size: 8 member using 10G SFP ports
Max. Stacking Distance: Up to 10 kms with long range transceivers

Models

Aruba 6200F 24G 4SFP+ Switch (JL724A)
24x ports 10/100/1000BaseT ports
4x 1/10G SFP+ ports
Internal (fixed) power supply (200W – 80plus Silver), fixed fans
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 4.36 kg (9.61 lbs)

Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725A)
24x ports 10/100/1000BaseT ports
4x 1/10G SFP+ ports
Internal (fixed) power supply (500W), fixed fans
Up to 370W of Class 4 PoE
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 4.90 kg (10.80 lbs)

Aruba 6200F 48G 4SFP+ Switch (JL726A)
48x ports 10/100/1000BaseT ports
4x 1/10G SFP+ ports
Internal (fixed) power supply (200W – 80plus Silver), fixed fans
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 4.45 kg (9.81 lbs)

Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)
48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
4x 1/10G SFP+ ports
Internal (fixed) power supply (500W), fixed fans
Up to 370W of Class 4 PoE
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 5.05 kg (11.13 lbs)

Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A)
48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
4x 1/10G SFP+ ports
Internal (fixed) power supply (950W – 80plus Gold), fixed fans
Up to 740W of Class 4 PoE
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 5.10 kg (11.24 lbs)

Management ports

1x USB-C Console Port
1x OOBM port
1x USB Type-A Host port
1x Bluetooth dongle to be used with Aruba CX Mobile App

POE power

740W of Class 4: JL728A
370W of Class 4: JL725A, JL727A

Mounting

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Environmental

Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1°C degree C for every 1,000 ft. from 5,000 ft. to 10,000 ft.
Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing
Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft.
Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing
Max. Operating Altitude: 10,000 feet (3.04 km)
Max Non-operating Altitude: 15,000 feet (4.6 km)
Acoustics:
Sound Power (LWAd) range: 4.9 – 5.3 Bel
Sound Pressure (LpAm) (Bystander) range: 32.5 – 37.1 dB
Primary airflow: Front and side to back

Electrical characteristics

Frequency range: 50-60 Hz
AC Voltage: 100-240 volts
Maximum current range: 1.4A – 11A

Safety

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; EN 62368-1:2014 +A11:2017
UL 60950-1 2nd Ed.
CAN/CSA 22.2 No 60950-1-07
IEC 60950-1:2005 (w/all know national deviations); IEC 62368-1:2014 2nd Ed.
CNS-14336-1

Emissions

EN 55032:2015 +AC:2016, Class A
EN 55024:2010
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
FCC 47 CFR part 15B Class A
ICES-003 Class A
VCCI Class A
CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A
CISPR 24:2010
CISPR 35:2016

Immunity

Generic: CISPR 35
EN: EN 55035:2017
ESD: IEC 61000-4-2
Radiated Immunity: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge IEC 61000-4-5
Conducted Immunity: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: IEC/EN 61000-3-2
Flicker: IEC/EN 61000-3-3
