Specifications

Performance

System Switching Capacity: 880 Gbps
System Throughput Capacity: 660 Mpps
Stack Size: 10 member using 10G SFP ports
Max. Stacking Distance: Up to 10 kms with long range transceivers
Stacking Bandwidth: 200 Gbps

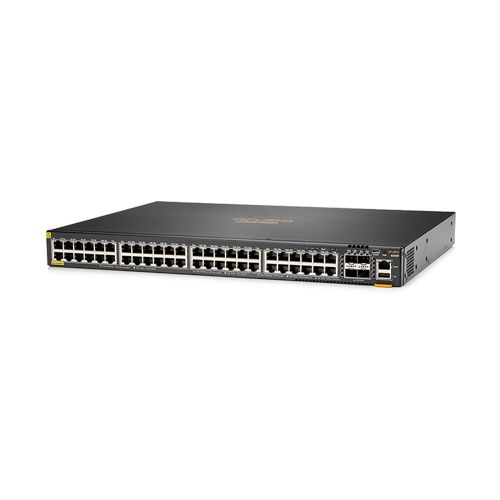

Models

Aruba 6300M 24p HPE Smart Rate 1G/2.5G/5G/10G Class 6 PoE and 2p 50G and 2p 25G Switch (R8S89A)24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2x 10G/25G SFP ports (MACSEC)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Two field-replaceable, hot-swappable fan trays (included), no empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.26 Kg (11.60 lbs)

Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch (R8S90A)48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
2x 1/10/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2x 10G/25G SFP ports (MACSEC)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Two field-replaceable, hot-swappable fan trays (included), no empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.48 Kg (12.08 lbs)

Aruba 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and Class 6 POE ports supporting up to 60W per port (on ports 13-48)
2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2x 1/10G SFP ports (LRM + MACSEC)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Two field-replaceable, hot-swappable fan trays (included), no empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.47 Kg (12.06 lbs)

Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch (R8S92A)
24x 1G/10G SFP+ ports (LRM + MACSEC)
2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2x 10G/25G SFP ports (MACSEC)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Two field-replaceable, hot-swappable fan trays (included), no empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 4.85 Kg (10.70 lbs)

Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)
24x 1G/10G SFP+ ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Two field-replaceable, hot-swappable fan trays (included), no empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.8 kg (12.78 lbs)

Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL659A)
48x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Delivers up to 2880W of Class 6 PoE Power
Two field-replaceable, hot-swappable fan trays (included), no empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 6.71 kg (14.8 lbs)

Aruba 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL660A)
24x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
Delivers up to 1440W of Class 6 PoE Power
One field-replaceable, hot-swappable fan tray (included), one empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 6.06 (13.36 lbs)

Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL661A)
48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
48 ports of full redundancy PoE+ Power with two 1600W PSUs
One field-replaceable, hot-swappable fan tray (included), one empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.72 kg (12.61 lbs)

Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL662A)
24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
24 ports of full redundancy PoE+ Power with two 1600W PSUs
One field-replaceable, hot-swappable fan tray (included), one empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.55 kg (12.23 lbs)

Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A)
48x ports 10/100/1000BaseT ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
One field-replaceable, hot-swappable fan tray (included), one empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.51 kg (12.14 lbs)

Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A)
24x ports 10/100/1000BaseT ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)/li>
2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
One field-replaceable, hot-swappable fan tray (included), one empty slot
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 5.43 kg (11.97 lbs)

Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle (JL762A)
48x ports 10/100/1000BaseT ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
2 field-replaceable, hot-swappable power supply slots and comes with 1 Power-to-Port power supply (JL760A) installed. Additional Power-to-Port power supply can be ordered separately. Supports JL760A power-supply only
Two field-replaceable, hot-swappable fan trays (included), no empty slot. Supports JL761A Pwr2Prt Fan Tray only
Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
Weight: 1 PSU 5.7 kg (12.5 lbs); 2 PSU 6.27 kg(13.8 lbs)

Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)
48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
Internal (fixed) power supply (950W), fixed fans
Up to 720W of PoE+
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 5.10 kg (11.24 lbs)

Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL666A)
24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
Internal (fixed) power supply (950W), fixed fans
Up to 370W of PoE+
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 4.95 kg (10.91 lbs)

Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch (JL667A)
48x ports 10/100/1000BaseT ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
Internal (fixed) power supply (200W), fixed fans
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 4.46 kg (9.83 lbs)

Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A)
24x ports 10/100/1000BaseT ports
4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
Internal (fixed) power supply (200W), fixed fans
Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
Weight: 4.36 kg (9.61 lbs)

Management ports

1x USB-C Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle for use with Aruba CX Mobile App

POE power

Up to 2880W of Class 8: R8S90A
Up to 2880W of Class 6 and Class 8: R8S91A
Up to 2880W of Class 6: JL659A, R8S89A
Up to 1440W of Class 6: JL660A
Up to 1440W of Class 4: JL661A
Up to 720W of Class 4: JL662A
720W of Class 4: JL665A
370W of Class 4: JL666A

Mounting

Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Power supplies and fan tray

Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A)
Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A)
Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
Aruba X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
Aruba 6300M 250W 36-72VDC PSU (JL757A)
Aruba 6300M 1050W 36-72VDC (JL758A)
Aruba 6300M Fan Tray (JL669A)
Aruba 6300M Power-to-Port Fan Tray (JL761A)

Environmental

Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft
Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing
Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft
Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing
Max. Operating Altitude: 10,000 feet (3.04 km)
Max Non-operating Altitude: 15,000 feet (4.6 km)
Acoustics:
Sound Power (LWAd) range: 4.6- 5.2 Bel
Sound Pressure (LpAm) (Bystander) range: 28.7-34.9 dB
Primary airflow: Front and side to back. JL762A has back to front and side.

Electrical characteristics

Frequency range: 50-60 Hz
AC Voltage: 100-240 volts
Maximum current range: 12A – 1.2A

Safety

60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
UL 60950-1 2nd Ed.
CAN/CSA 22.2 No 60950-1-07
IEC 60950-1:2005 (w/all know national deviations)

Emissions

EN 55022:2010, Class A
EN 55032:2012, Class A
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3:2013
FCC part 15 Class A or FCC 47 CFR part 15B Class A
ICES-003 Class A
VCCI Class A
CISPR 22 Class A
CISPR 32 Class A or CISPR 32 Ed 2.0: 2015 +
COR1:2016
CISPR 24:2010 or CISPR 35:2016

Immunity

Generic: CISPR 24 / CISPR 35
EN: EN 55024:2010 /EN 55035:2017
ESD: IEC 61000-4-2
Radiated: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge IEC 61000-4-5
Conducted: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: IEC/EN 61000-3-2
Flicker: IEC/EN 61000-3-3
