Specifications

Performance

System Switching Capacity: up to 28 Tbps
System Throughput Capacity: up to 11.4 Bpps

Models

Aruba CX 6405 Switch (R0X26A)
1x 6405 Chassis Switch (R0X24A)
1x Management Module (R0X31A)
2x Fan Trays (R0X32A)
5 open module slots
Power supply units ordered separately
Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″)
Weight: 29.3 kg (64.7 lbs)

Aruba 6405 v2 Switch (R0X26C)
1x 6405 Chassis Switch (R0X24A)
1x Management Module (R0X31A)
2x Fan Trays (R0X32A)
5 open module slots
Power supply units ordered separately
Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″)
Weight: 29.3 kg (64.7 lbs)

Aruba CX 6405 96G CLS4 PoE 4SFP56 Switch bundle (R0X29A)
1x 6405 Chassis Switch (R0X24A)
1x Management Module (R0X31A)
2x Fan Trays (R0X32A)
1x R0X38B Line Card and 1x R0X39B Line Card for 96x 10/100/1000Base-T PoE+ ports supporting up to 30W per port and 4x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
3 open module slots
Power supply units ordered separately
Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″)
Weight: 34.1 kg (75.2 lbs)

Aruba CX 6405 48SFP+ 8SFP56 Switch bundle (R0X30A)
1x 6405 Chassis Switch (R0X24A)
1x Management Module (R0X31A)
2x Fan Trays (R0X32A)
2x R0X43A Line Card for 48x 1G/10G SFP+ ports and 8x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
3 open module slots
Power supply units ordered separately
Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″)
Weight: 34.0 kg (75 lbs)

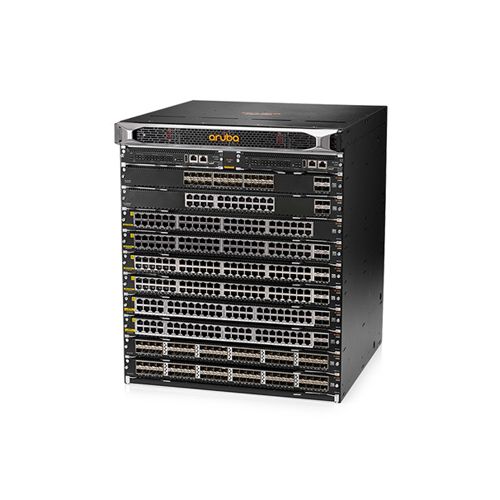

Aruba CX 6410 Switch (R0X27A)
1x 6410 Chassis Switch (R0X25A)
1x Management Module (R0X31A)
4x Fan Trays (R0X32A)
10 open module slots
Power supply units ordered separately
Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8″ x 17.5″ x 17.7″)
Weight: 53.5 kg (118.2 lbs)

Aruba 6410 v2 Switch (R0X27C)
1x 6410 Chassis Switch (R0X25A)
1x Management Module (R0X31A)
4x Fan Trays (R0X32A)
10 open module slots
Power supply units ordered separately
Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8″ x 17.5″ x 17.7″)
Weight: 53.5 kg (118.2 lbs)

Aruba CX 6410 96G CLS4 PoE 4SFP56 Switch bundle (JL741A)
1x 6410 Chassis Switch (R0X25A)
1x Management Module (R0X31A)
4x Fan Trays (R0X32A)
1x R0X38B Line Card and 1x R0X39B Line Card for 96x 10/100/1000Base-T PoE+ ports supporting up to 30W per port and 4x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
8 open module slots
Power supply units ordered separately
Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) x 44.85 cm (20.8″ x 17.5″ x 17.7″)
Weight: 58.3 kg (128.8 lbs)

Management Ports

1x USB-C Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle for use with Aruba CX Mobile App

POE Power

Up to 146 ports of 60W IEEE 802.3bt High Power PoE

Mounting

Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately.

Modules

Aruba 6400 Management Module (R0X31A)
Aruba 6400 48p 1GbE CLS4 PoE Mod (R0X38B)
Aruba 6400 48-port 1GbE Class 4 PoE v2 Module (R0X38C)
Aruba 6400 48p 1GbE CLS4 PoE 4SFP56 Mod (R0X39B)
Aruba 6400 48-port 1GbE Class 4 PoE and 4-port SFP56 v2 Module (R0X39C)
Aruba 6400 48p 1GbE CLS6 PoE 4SFP56 Mod (R0X40B)
Aruba 6400 48-port 1GbE Class 6 PoE and 4-port SFP56 v2 Module (R0X40C)
Aruba 6400 48p Smart Rate CLS6 PoE 4SFP56 Mod (R0X41A)
Aruba 6400 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 v2 Module (R0X41C)
Aruba 6400 24p 10GT 4SFP56 Mod (R0X42A)
Aruba 6400 24-port 10Gbase-T and 4-port SFP56 v2 Module (R0X42C)
Aruba 6400 24p SFP+ 4SFP56 Mod (R0X43A)
Aruba 6400 24-port SFP+ and 4-port SFP56 v2 Module (R0X43C)
Aruba 6400 48p 10G/25G SFP28 Mod (R0X44A)
Aruba 6400 12p 40G/100G QSFP28 Mod (R0X45A)
Aruba 6400 12p 40G/100G QSFP28 Mod (R0X45A)
Aruba 6400 48p 10G/25G SFP28 v2 Mod (R0X44C)
Aruba 6400 12p 40G/100G QSFP28 v2 Mod (R0X45C)

Power Supplies

Aruba 6400 1800W PS w/C16 Inlet Accessory (R0X35A)
Aruba 6400 3000W PS w/C20 Inlet Accessory (R0X36A)

Fan Tray

Aruba 6400 Fan Tray (R0X32A)

Mounting Kit

Aruba 6400 4-post Rack Mount Kit (R0X37A)

Environmental

Operating temperature:
32°F to 113°F (0°C to 45°C), up to 5,000 feet
32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet
1°C de-rating per 1,000 feet above 5,000 feet
Operating Relative Humidity: 15% to 95% relative humidity at 113°F (45°C), non-condensing
Non-Operating: -40°F to 158°F (-40°C to 70°C)
Non-Operating Storage relative humidity: 15% to 95% @ 149°F (65°C) noncondensing
Max. Operating Altitude: 10,000 feet (3km)
Max Non-operating Altitude: 10,000 feet (3 km)
Primary airflow: Front-to-back

Electrical Characteristics

Frequency range: 50-60 Hz
80plus.org certification: Platinum rated for both R0X35A and R0X36A PSUs
AC Voltage: R0X35A and R0X36A PSUs: 110-127 / 200-240VAC
Current: R0X35A PSU: 12A @ 110-127VAC, 10A @ 200-240VAC; R0X36A PSU: 16A @ 110-240VAC

Safety

60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
EN62368-1:2014
IEC 60950-1:2005 Ed.2; AM 1:2009+A2:2013
IEC 62368-1 Ed. 2
IEC 60825:2007 (Applies to products with lasers)

Emissions

VCCI Class A
EN 55022 Class A
CISPR 22 Class A
IEC/EN 61000-3-2
IEC/EN 61000-3-3
ICES-003 Class A
AS/NZS CISPR 22 Class A
FCC (CFR 47, Part 15) Class A
GB9254
EN55032:2012 Class A
CISPR32:2012 Class A

Immunity

Generic: CISPR 24 / CISPR 35
EN: EN 55024:2010 +A1:2001 +A2:2003; ETSI EN 300 386 V1.3.3
ESD: IEC 61000-4-2
Radiated: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge IEC 61000-4-5
Conducted: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: IEC/EN 61000-3-2
Flicker: IEC/EN 61000-3-3
