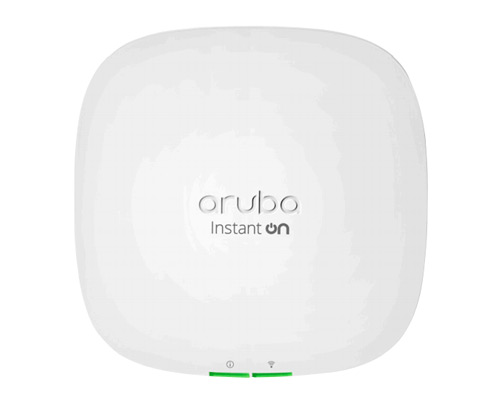

HPE Networking Instant On AP22 - 5 PCS Bundle

HPE Networking Instant On AP22 Indoor Access Points deliver affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.

The compact form factor of the HPE Networking Instant On AP22 Indoor Access Points (AP) delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included – no extra charge or need for external controllers.

Certifications EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input Voltage Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately

Wi-Fi Antenna Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

Connectivity IEEE 802.11ax

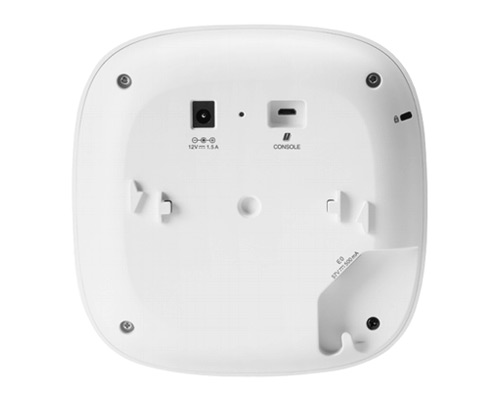

External I/O Ports (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

Mounting The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.

Power Consumption Description Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)

Radio Coverage Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

Built-In Security Gateway/Firewall
When it comes to stopping people and bots from accessing your network from the outside it’s critical for small businesses. We’ve added advanced features that do not require external gateways and the complexity that comes with them. In case of gateway failure, you can quickly and easily swap it out with another AP in a single click.

App Visibility And Control
Get full visibility into the apps running on your network along with the ability to block certain applications from being used. You also get the flexibility to turn off this feature from the mobile app as well.

Easy Guest Access
Customize the experience with your logo, authentication, rules of use or keep it simple. Applying bandwidth rates, setting data usage per app and limiting duration of use is also a breeze. Or use an external portal or service like Facebook Wi-Fi. You can also have open guest networks for quick and easy access.

Enterprise Grade Wi-Fi
Keep users happy as they move between spaces or meetings with a seamless handoff between APs. All you need is to use is secure WPA2 or WPA3 authentication on your secure networks and we do the rest. You can also control the network width, channels and channel width to suit your specific environment in a single click.

Multi-Site Management
The cloud-hosted web interface and mobile app make it easy to manage multiple sites: multiple networks, distributed deployments and multi-tenancy deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write and read-only privileges.

PPPoE And Static IP
Every customer has different environment. They might want to authenticate with the ISP’s PPPoE server and provide static IP to the APs.

Smart MESH
Each of the HPE Networking Instant On APs support extending coverage to those hard to reach spaces where Ethernet cabling may not exist. The HPE Networking Instant On mobile app makes it easy to have a Mesh network up in minutes – indoor or out.

5 Star voice and video quality
Wi-Fi Alliance Certified Instant On APs automatically detect and prioritize applications such as Skype, FaceTime and WeChat that use SIP, SCCP and other popular protocols. Now it’s even easier to use softphones and the mobile apps that keep your users connected.
