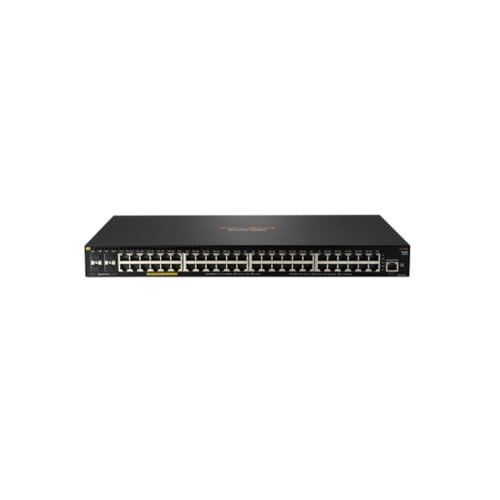

Aruba 2930F 48GPoE 4SFP 740W Switch

Expected dispatch on : February 01 - 02

Part No JL557A

Aruba 2930F 48G PoE+ 4SFP 740W Switch

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

AED 13,630.05
Inclusive of 5% VAT

Details

Aruba 2930F 48GPoE 4SFP 740W Switch

Product Differentiator (long): Popular Aruba 52-port Gig access switch with high-power 740 Watts PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.
Power Consumption Description: 980 W (maximum)
Heat Dissipation: 420.9 BTU/hr (444.1 kJ/hr)
Input Voltage: 100-127 / 200-240 VAC, rated
External I/O Ports: (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP
Latency: 1,000 Mb latency: < 3.8 µs 10Gbps latency: < 1.6 µs
Switching Capacity: 176 Gbps
Throughput: up to 112 Mpps
Memory and Processor: Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC
PoE Capability: 740 W PoE+
Management Features: Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Weight (imperial): 10.56 lb
Weight (metric): 4.79 kg
Product Dimensions (imperial): 1.73 x 17.42 x 12.77 in
Product Dimensions (metric): 4.39 x 44.25 x 32.42 cm

More Information

More Information
Part No	JL557A
GTIN-/EAN-Code	0190017219424
UPC	190017219424
Dimensions Length (inch)	1.73
Dimensions Width (inch)	17.42
Dimensions Height (inch)	12.77
Brand	Aruba Networks
Switches	PoE
PoE Capability	740 W PoE+
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC
Throughput	up to 112 Mpps
Switching Capacity	176 Gbps
