Aruba 6100 48G CL4 4SFP Switch
December 27 - 28

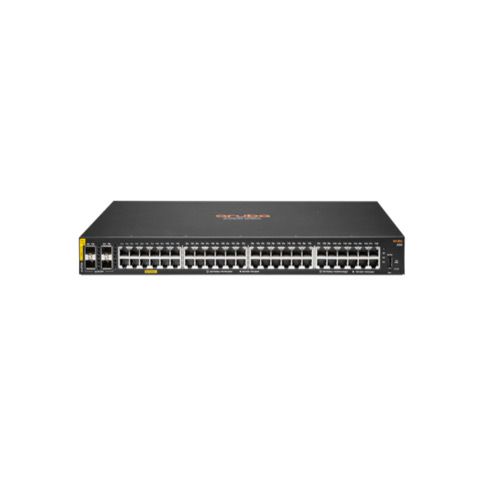

Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch
The Aruba CX 6100 Switch Series is a modern series of entry-level access switches designed for branch offices, mid-market enterprises, and small and medium-sized businesses (SMBs). The Aruba CX 6100 switches are an easy wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. They are designed for reliable, simple, and secure access.
Inclusive of 5% VAT
Details
Aruba 6100 48G CL4 4SFP Switch
Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system, which are used throughout the Aruba CX portfolio to provide a more consistent, more efficient operator experience. To support IoT devices such as security cameras and wireless APs, this layer 2 switch series includes handy built-in high-speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE. A fanless 12-port model is perfect for usage in calm work environments.
Product Differentiator(long): The Aruba CX 6100 Switch Series delivers entry level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprise, and SMBs. This model has 48x 10/100/1000BASE-T and 4x 1G/10G SFP ports. 370W Class 4 PoE/PoE+ power.
Power Consumption Description: Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Input Voltage: 100-127 VAC / 200-240 VAC
External I/O Ports: 48x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports
Latency1 Gbps: 1.9 ?Sec , 10 Gbps: 1.8 ?Sec
Switching Capacity: 176 Gbps
Throughput: 98.6 Mpps
Memory and Processor: Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
PoE Capability: 370W Class 4 PoE/PoE+
Weight (imperial): 11.07 lbs
Weight (metric): 5.0 kg
Product Dimensions (imperial): 1.73 x 17.4 x 12.0 in
Product Dimensions (metric): 4.4 x 44.2 x 30.5 cm
More Information
Part No | JL675A |
---|---|
GTIN-/EAN-Code | 0190017347974 |
UPC | 190017347974 |
Dimensions Length (inch) | 1.73 |
Dimensions Width (inch) | 17.4 |
Dimensions Height (inch) | 12.0 |
Brand | Aruba Networks |
Switches | PoE |
PoE Power | 301 to 400 |
Uplink Ports | 4 x 1G SFP |
