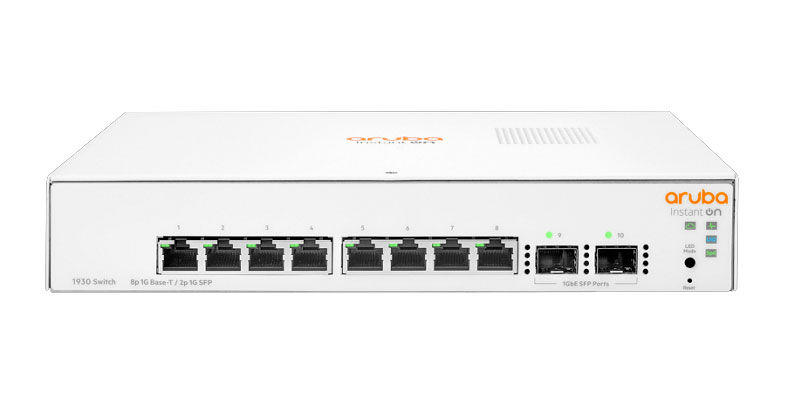

HPE Networking Instant On 1930 8G 2SFP Switch

Simplify Network Deployment and Management for Small Organizations

The HPE Networking Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.

The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).

The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.

The HPE Networking Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features

The HPE Networking Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.

Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.

Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Product Differentiator (long) Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 and 2 SFP 1GbE ports.

Power Consumption Description11.0 W maximum, 6.2 W idle

Input Voltage100 - 240 VAC

External I/O Ports8 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports

Switching Capacity20 Gbps

Throughput14.88 Mpps, maximum

Memory and ProcessorARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer

Management FeaturesHPE Networking Instant On Portal, Web browser, SNMP Manager

Warranty Standard StatementLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration

Weight (imperial)2.55 lb

Weight (metric)0.82 kg

Product Dimensions (imperial)1.73 x 10 x 6.28 in

Product Dimensions (metric)4.39 x 25.4 x 15.95 cm
