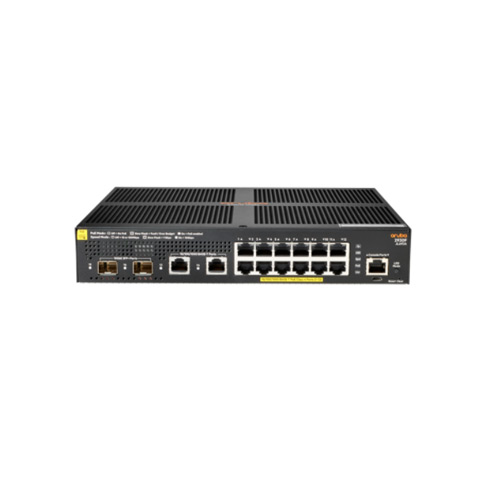

Aruba 2930F 12G PoE Switch

Expected dispatch on : February 08 - 09

Part No JL693A

Aruba 2930F 12G PoE+ 2G/2SFP+ Switch

The Aruba 2930F Switch Series is intended for customers that want to create digital workplaces that are mobile-friendly. Advanced security and network management tools such as Aruba ClearPass Policy Manager, Aruba AirWave, and cloud-based Aruba Central make these Layer 3 access switches simple to deploy and administer. For enterprise edge, SMB, and branch offices, the Virtual Switching Framework (VSF) provides stacking scale and simplicity. With support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, comprehensive QoS, and no software licencing, the 2930F combines performance and value.

AED 5,226.90
Inclusive of 5% VAT

Details

Aruba 2930F 12G PoE Switch

Product Differentiator (long): Popular Aruba 16-port Gig + 10G access switch with 139 Watts PoE+ power. This model has 12x 10/100/1000 PoE+ ports and four built-in ports (2x 10G / 1G SFP+ transceiver slots and 2x 1GBASE-T) for uplink connectivity. PoE+ is supported with a power budget of 139 Watts.
Power Consumption Description: 170 W (maximum)
Heat Dissipation: 68.2 BTU/hr (72.0 kJ/hr)
Input Voltage: 90 - 264 VAC, rated
External I/O Ports: (12) RJ-45 autosensing 10/100/1000 PoE+ ports (2) SFP+ 1/10GbE ports (2) 1GbE ports PHY-less
Latency: 1,000 Mb latency: < 3.8 µs 10Gbps latency: < 2.9 µs
Switching Capacity: 68 Gbps
Throughput: up to 41.7 Mpps
Memory and Processor: Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC
PoE Capability: 139 W PoE+
Management Features: Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Weight (imperial): 4.85 lb
Weight (metric): 2.2 kg
Product Dimensions (imperial): 1.73 x 10 x 10 in
Product Dimensions (metric): 4.39 x 25.4 x 25.4 cm

More Information

More Information
Part No	JL693A
GTIN-/EAN-Code	0190017368207
UPC	190017368207
Dimensions Length (inch)	1.73
Dimensions Width (inch)	10
Dimensions Height (inch)	10
Brand	Aruba Networks
Switches	PoE
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC
Throughput	up to 41.7 Mpps
Switching Capacity	68 Gbps
Voltage	90 - 264 VAC, rated
