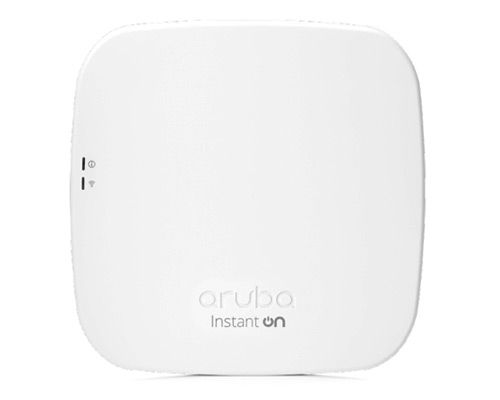

HPE Networking R2X01A Instant On AP12 (RW) Access point

HPE Networking Instant On AP12 Indoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for low to medium-density small business environments. Business-grade capabilities are designed to meet the mobile, IoT and security needs of small boutiques, tech-start-ups, and retailers at an attractive price point.

The compact form factor of the HPE Networking Instant On AP12 Indoor Access Points deliver multi-user capabilities and a maximum aggregate peak data rate of 1.6 Gbps for high-definition video streaming and cloud application requirements. These access points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.

Certifications UL 2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Input Voltage Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately

Wi-Fi Antenna Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz

Connectivity IEEE 802.11ac, 802.11n

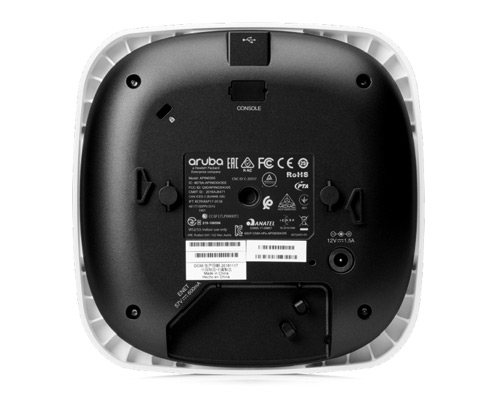

External I/O Ports (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

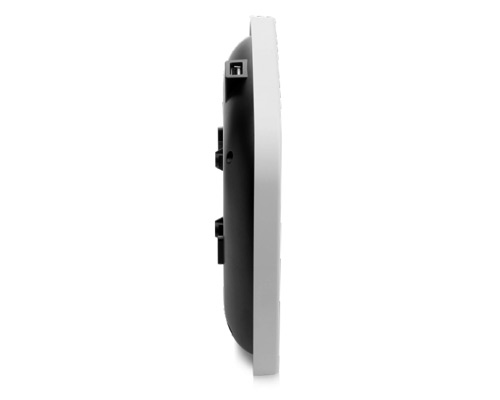

Mounting The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling).

Radio Coverage Dual Radio for simultaneous dual-band operation 5 GHz 802.11ac 3x3 MIMO for up to 1,300 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

App Visibility And Control
Get full visibility into the apps running on your network along with the ability to block certain applications from being used. You also get the flexibility to turn off this feature from the mobile app as well.

Easy Guest Access
Customize the experience with your logo, authentication, rules of use or keep it simple. Applying bandwidth rates, setting data usage per app and limiting duration of use is also a breeze. Or use an external portal or service like Facebook Wi-Fi. You can also have open guest networks for quick and easy access.

Enterprise Grade Wi-Fi
Keep users happy as they move between spaces or meetings with a seamless handoff between APs. All you need is to use is secure WPA2 or WPA3 authentication on your secure networks and we do the rest. You can also control the network width, channels and channel width to suit your specific environment in a single click.

Multi-Site Management
The cloud-hosted web interface and mobile app make it easy to manage multiple sites: multiple networks, distributed deployments and multi-tenancy deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write and read-only privileges.

PPPoE And Static IP
Every customer has different environment. They might want to authenticate with the ISP’s PPPoE server and provide static IP to the APs.

Smart Mesh
Each of the HPE Networking Instant On APs support extending coverage to those hard to reach spaces where Ethernet cabling may not exist. The HPE Networking Instant On mobile app makes it easy to have a Mesh network up in minutes – indoor or out.

5 Star Voice And Video Quality
Wi-Fi Alliance Certified Instant On APs automatically detect and prioritize applications such as Skype, FaceTime and WeChat that use SIP, SCCP and other popular protocols. Now it’s even easier to use softphones and the mobile apps that keep your users connected.
