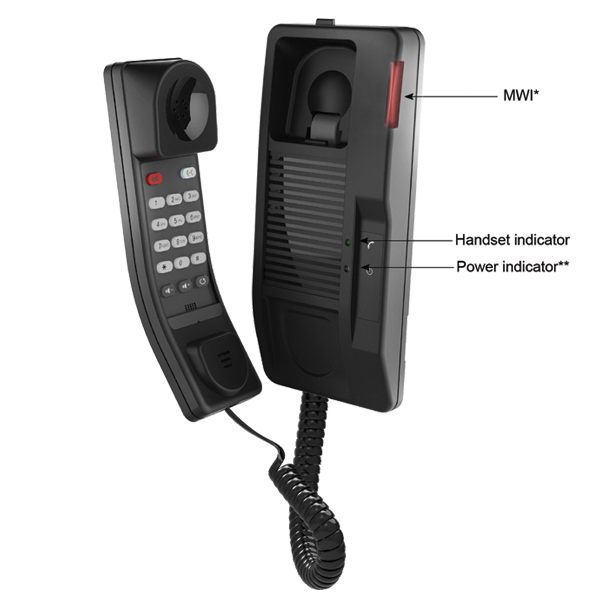

Avaya H229 IP Device 700514315

Description

These are devices are elegant in appearance with a friendly software suite for the hotel market. They are stylish, have contemporary appearance,excellent voice quality and powerful functionality. The new H200 Series will replace traditional phones and pave way for a new generation of intelligent terminal equipment. The H200 Series devices are set to lookgreat in most hotel rooms and will support most application requirements.

Specifications

Features

Wall-mount | Call hold, redial, transfer, release | Call transfer (bland or consultative) | Ring tone high /low    /off | Do not disturb | Paging/intercom | Configurable dial plan

User Interface

Keypad dialing | Voicemail retrieval via Keypad or programmable keys | 1 programmable key for speed
dial or feature access4

Configuration and Management

WEB management | Auto-provisioning using TFTP / FT | Recover firmware and factory reset through            POST mode| Upgrade firmware via FTP or TFTP

Enterprise Functionality

802.af power over Ethernet | VLAN and DSCP | VPN

 Networking

Support basic NAT and NAPT | Support PPPoE for xDSL | Support DHCP client on WAN | Support DNS
relay, SNTP client, firewall

Protocols Supported

SIP (RFC3261, RFC3262, RFC3265, RFC3264, RFC3515, RFC2781) | SDP (RFC2327) | DTMF transport
(RFC2833) | SIP INFO and in-band DTMF transport | RTP/RTCP (RFC3550, 3551) | Peer to peer calling

QoS

DiffServ / IP precedence; IEEE 802.3p

Audio / Codec

G.711 A law and G.711 U law 64K | G.729 | G.723.1 | DTMF tone generation | Acoustic echo cancellation |
Built-in audio mixer

User level configuration and status

Brower based configuration interface and status page | Edit the programmable keys using web interface

Physical Features

Power supply mode: PoE (802.3af) | Keypad: 17 keys | Color: black

Call Control

Avaya Aura, Avaya IP Office as well as the Powered by Avaya IP Office cloud service available from          Avaya channel partners, and Avaya Approved Third Party Platforms
