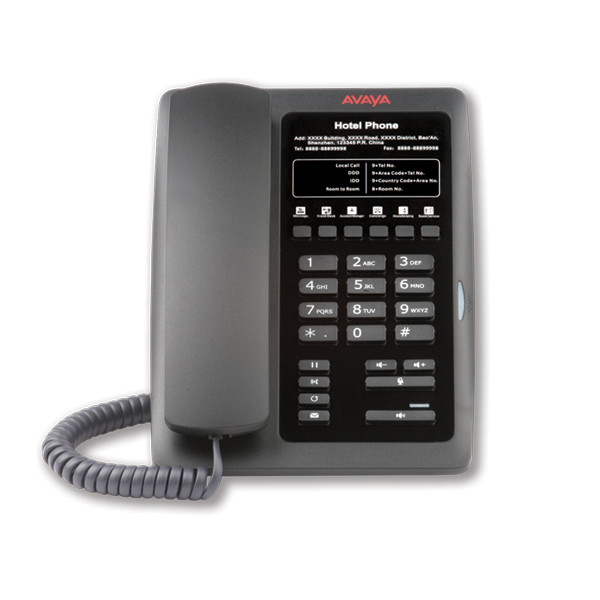

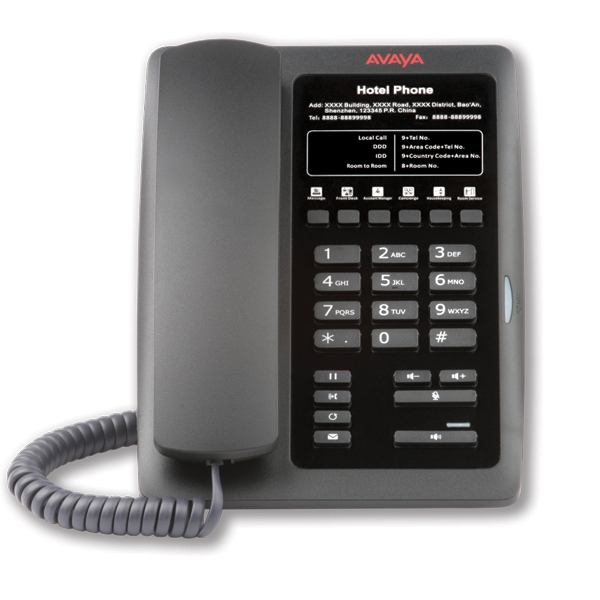

Avaya H239 IP Device 700514316

Description

These are devices are elegant in appearance with a friendly software suite for the hotel market. They are stylish, have contemporary appearance,excellent voice quality and powerful functionality. The new H200 Series will replace traditional phones and pave way for a new generation of intelligent terminal equipment. The H200 Series devices are set to lookgreat in most hotel rooms and will support most application requirements.

Specifications

Phone Features

Vxworks OS | Support SIP2.0 (RFC3261) and correlative RFCs | SIP supports 1 SIP servers, and
backup SIP proxy servers | Supports SIP UDP / TCP / TLS

Key Features

6 soft keys programmable | Multi language displayed (web)

Audio

HD voice: HD handset | Codec: G.711A / U, G.723.1 high/low, G.729AB, G.722, G.726-32 | DTMF: in-band, RFC2833 and SIP INFO | Full-duplex acoustic echo canceller—hands-free mode| Voice activity
detection / comfort noise generation / background noise estimation / noise reduction | Packet loss
concealment | Dynamic adaptive jitter buffer up to 300ms | DTMF: in-band, out-of-band-DTMF-relay
(RFC2833) / SIP INFO

Advanced Features

Call transfer | Call holding | Call waiting | Redial | Call completion | Predial | MWI | Flexible dial plan |
Barring function for outgoing calls | Do not disturb | Auto answer | CLIR (rejects anonymous calls) |
CLIP (to make an anonymous call) | Dial without registration | Call logs with missed calls / incoming
calls / outgoing calls (Each support 300 records) | Speed dial | Hotline / warm-line | Password dial |
DTMF hidden | Action URL / active URI | Multicast | Web dial | Emergency call

Network / Security Features

WAN / LAN: 10 / 100M Ethernet ports (bridge mode) | IP configuration: Static / DHCP / PPPoE |
Network access control: 802.1x | VPN:L2TP (basic unencrypted) / OpenVPN | VLAN | QoS

Deployment & Maintenance

Web management portal | Web-based packet dump | Configuration export/import | Firmware upgrade | Syslog

Physical Features

s Adapter input: AC100-240V | Adapter output: DC 5V/1A | WAN Port-10 / 100 BASE-T RJ-45 for LAN |
LAN Port-10 / 100 BASE-T RJ-45 for PC | Handset: RJ9 | Power consumption: IDLE: 2.5 W active: 2.8W |
Operation temperature: 0~40 °C | Relative humidity: 10~65% | Main chipset: Broadcom | SDRAM: 16 MB |
FLASH: 8 MB

Call Control

Avaya Aura, Avaya IP Office as well as the Powered by Avaya IP Office cloud service available from Avaya
channel partners, and Avaya Approved Third PartyPlat forms
