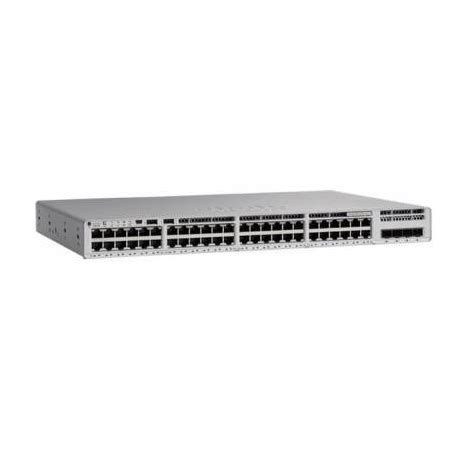

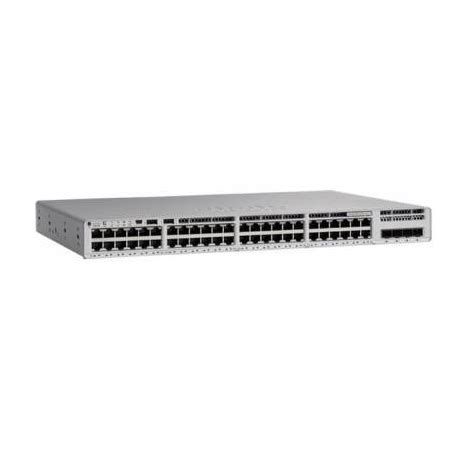

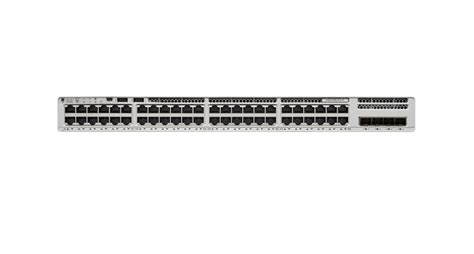

Cisco Catalyst 9200L 48-port data, 4 x 10G ,Network Essentials
C9200L-48T-4X-E is the Catalyst 9200L 48-port Data 4x10G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and
Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family
pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always
on, and IT simplified.
Details
Cisco Catalyst 9200L 48-port data, 4 x 10G ,Network Essentials
Downlinks total 10/100/1000 or PoE+ copper ports
48 ports data
Uplink configuration
4x 10G fixed uplinks
Default primary AC power supply
PWR-C5-125WAC
Fans
Fixed redundant
Software
Network Essentials
Chassis Dimensions
1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm
Virtual Networks
1
Stacking bandwidth
80 Gbps
Total number of MAC addresses
16,000
Total number of IPv4 routes (ARP plus learned routes)
11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries
3,000
IPv6 routing entries
1,500
Multicast routing scale
1,000
QoS scale entries
1,000
ACL scale entries
1,500
Packet buffer per SKU
6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries
16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM
2 GB
Flash
4 GB
VLAN IDs
1024
Total Switched Virtual Interfaces (SVIs)
512
Jumbo frames
9198 bytes
Wireless bandwidth per switch
N/A
Switching capacity
176 Gbps
Forwarding rate
261.9 Mpps
Mean time between failures (hours)
503,400
More Information
| Part No | C9200L-48T-4X-E-1 |
|---|---|
| Brand | Cisco |
| Switches | PoE |
| Ports | 48 |
