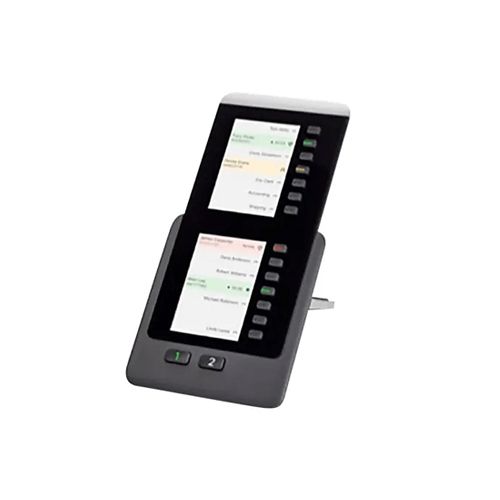

Cisco 8800 Series Audio Key Expansion Module - CP-8800-A-KEM in Dubai, UAE

The Cisco 8800 Series Audio Key Expansion Module extends the capabilities of Cisco 8851, 8851NR, and 8861 IP phones with additional buttons and a colour LCD display.

This key expansion module adds 14 physical keys with access to 14 additional keys, using the page keys, for a total of 28 additional keys.

The 8800 Series Audio KEM comes with a foot stand and all necessary hardware to connect it directly to the base device in the traditional side-by-side fashion and you can connect up to three 8800 Series Audio KEMs to the IP Phone 8861 and up to two to the 8851/8851NR.

Features and Benefits

• Graphical display - The 4.3-inch graphical (TFT) colour display provides 16-bit colour depth and 480 x 272 effective pixel resolution, with backlight. The display also supports localization requiring double-byte Unicode encoding for fonts.
• Articulation - You can articulate the display to match the same angle as the Cisco IP Phone 8851, 8861, and 8865 that it is connected to.
• Directory-number and feature buttons - The module has 18 physical buttons (36 using page keys).
• Page buttons - Use the two-page buttons to access each page of 18 buttons and provide phone status.
• Sleep or inactivity mode - When Cisco IP Phone 8851, 8861, and 8865 models are in power-saving sleep or inactivity mode, the Cisco IP Phone 8800 KEM is also in sleep or inactivity mode. Pressing any button on the key expansion module causes the display to awaken. The system administrator configures the inactivity period.

Power Requirements

The Cisco IP Phone 8800 Key Expansion Module doesn’t have its own local power supply; it gets power from the attached phones.
