D-Link DAP-1665 Wireless AC1200 Wave 2 Dual-Band Access Point DAP-1665/MNA

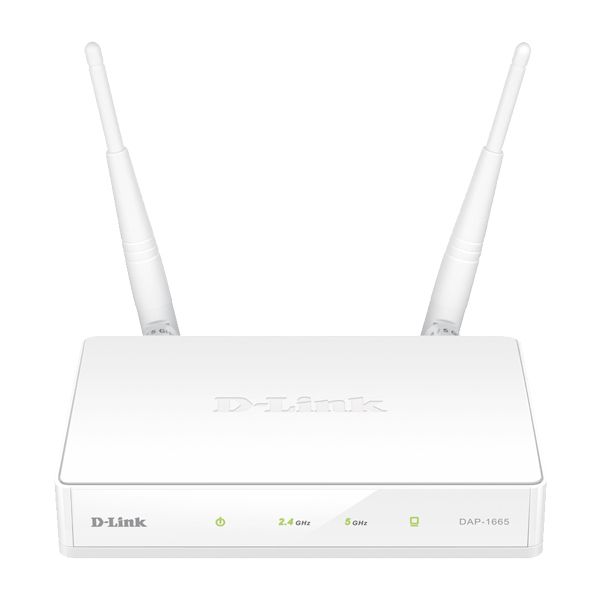

DAP-1665 AC1200 Wi-Fi Range Extender/Access Point

The DAP-1665 AC1200 Wi-Fi Range Extender/Access Point is a fast and versatile solution for bringing wireless AC to your existing wired network, or extending your current wireless network. The latest 802.11ac Wave 2 technology featuring beamforming and MU-MIMO delivers combined speeds of up to 1200 Mbps1, so you can create a high-speed wireless link between networks, or quickly transfer large files wirelessly between computers on the same network.

High-Speed Wireless and Wired LAN

The DAP-1665 features the latest 802.11ac wireless technology, capable of delivering combined speeds of up to 1200 Mbps over two bands. Use the 2.4 GHz band’s 300 Mbps for web surfing, email and chat, while simultaneously using the lower-interference 5 GHz band for network bridging, downloading, and file transfers. For wired connections, the Gigabit LAN port enables wired data speeds of up to 1000 Mbps, meaning that your Gigabit-compatible wired devices can also benefit from the high speeds of wireless AC.

Versatile Operation Modes

The DAP-1665 can be configured to operate in several modes, allowing you to customize it to your networking needs. Access Point mode allows the device to act as a central hub for wireless users, giving them access to your existing wired network. Wireless Client mode is available to enable the DAP-1665 to connect to another access point and provide network and Internet access to a remote wired device such as a gaming console or media center. Bridge mode allows you to create a high-speed wireless link between two wired networks (LANs), alleviating the need to install additional network cabling. Bridge mode with AP adds the functionality of a wireless access point to your bridged network, so wireless clients can access resources on both networks. Repeater mode extends wireless coverage of your existing wireless network to cover “dead” spots and reach farther into your home or office. Lastly, WISP Repeater and Client modes support users that are subscribed to Internet Service Providers (ISPs) that provide this type of equipment to connect to their wireless broadband connection.

Protect Your Wireless Network

The DAP-1665 provides 64/128-bit WEP encryption and WPA/WPA2 security to protect your network and wireless data. This device also supports Wi-Fi Protected Setup (WPS) to quickly set up protection for a wireless network. In addition, the access point features MAC address filtering and a disable SSID broadcast function to limit outsiders’ access to your wireless network. The DAP-1665 also features a Kensington security slot so you can protect your access point against theft.
