D-Link DAP-2620 Nuclias Connect AC1200 Wave 2 Wall-Plate DAP-2620/DL

DAP-2620 NUCLIAS CONNECT AC1200 WAVE 2 WALL-PLATED ACCESS POINT

Nuclias Connect Overview

Welcome to this Datasheet for Nuclias Connect, D-Link’s centralized management solution for Small-to-Medium-Sized Business (SMB) networks. Nuclias Connect makes it easier to analyze, automate, configure, optimize, scale, and secure your network — delivering the convenience of an Enterprisewide management solution, at an SMB price.

Solution Benefits

1 / Network-Wide Management

Free to download to a Windows server (or Linux via Docker) or PC, the Nuclias Connect software currently supports a dozen new and legacy D-Link Access Point (AP) models, and is capable of managing up to one thousand APs without the need for additional licensing charges, coupled with a local lite management Smartphone app and an inexpensive optional hardware controller (The Hub*) suitable for remote locations where a dedicated PC or server might be impractical.

2 / Flexibility to Meet Your Needs

Through software-based monitoring and remote management of all wireless Access Points (APs) on your network, Nuclias Connect offers tremendous flexibility compared to traditional hardwarebased management systems. Configuration can be done remotely. Management software is customizable, and enables control and analytics of a broad or fine granularity, presentable in a variety of formats. Additionally, admins can provide and manage a variety of distributed deployments, including the option to configure settings and admin accounts in a specific manner for each deployment. Nuclias Connect gives you the financial and technical flexibility to expand from a small network to a larger one (up to 1,000 APs), while retaining a robust and centralized management system.

3 / Easy Administration

Nuclias Connect supports multi-tenancy, so network admins can grant localized management authority for local networks. In addition, because APs can support eight SSIDs per radio, administrators have the option of using one SSID to create a guest network for visitors. Nuclias Connect allows for multiple user authentications and also makes it possible to configure specific access controls for each SSID, giving admins the option of configuring separate internal networks for different subnets. This means that more advanced Value-Added Services, such as Captive Portal or Wi-Fi Hotspot, can be used to help manage wireless network traffic.

4 / Insights at a Glance

Gain an extensive understanding of your network through usage analytics and status reports which can be viewed at a glance. Insights derived from traffic data can create business value. Traffic can be viewed across the entire network, to the level of a single AP.

5 / Network Security and Data Privacy

Nuclias Connect balances the need for access convenience with the need for security. All communications over the system are encrypted (WPA2/WPA31), with your user data never leaving your possession. Additional security measures (such as firewalls) can also be added to your network, without undue technical difficulty.

Product Introduction

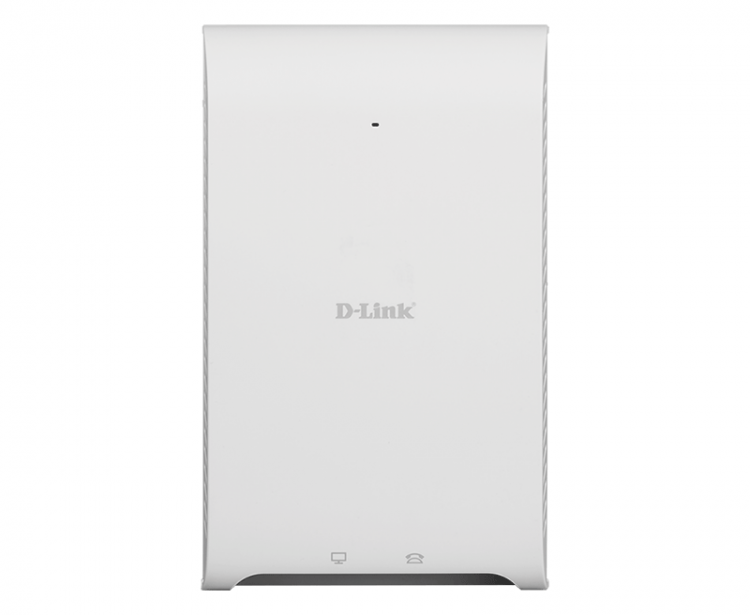

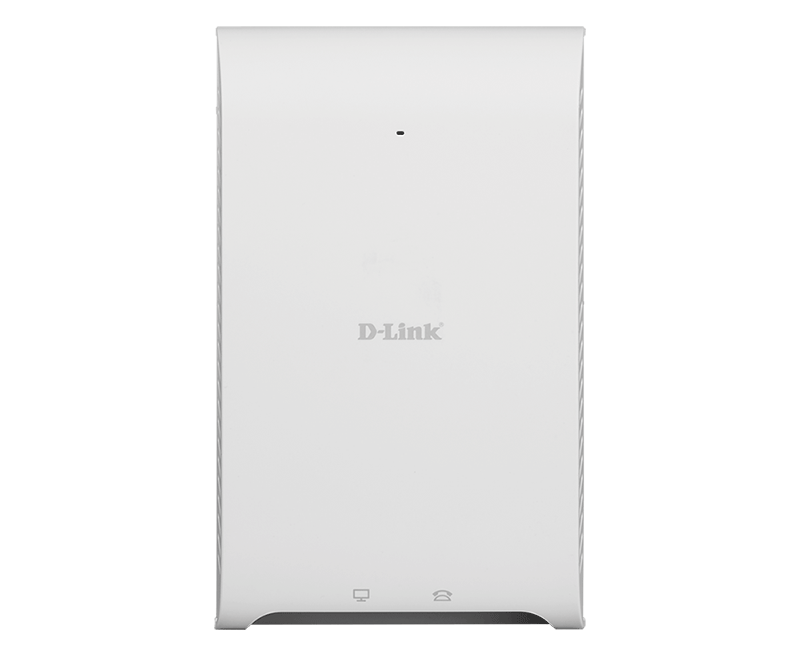

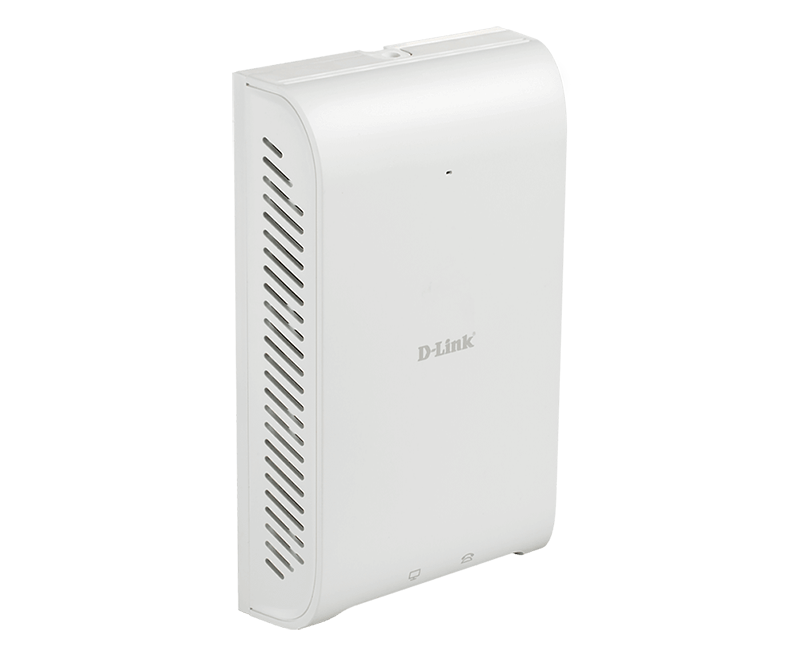

The DAP-2620 Nuclias Connect AC1200 Wave 2 Wall-Plated Access Point converts any Ethernet wall socket into a high-speed dualband AC Wave 2 Wi-Fi access point. Integrating a simplistic Gigabit Ethernet-to-Wireless design, wired interface, and a phone line connection, the DAP-2620 delivers simultaneous, dual-band, 2x2 MIMO technology for small, medium, and enterprise networks.

Wireless Performance

New-generation IEEE 802.11ac Wave 2 wireless
High-speed 1200 Mbps throughput

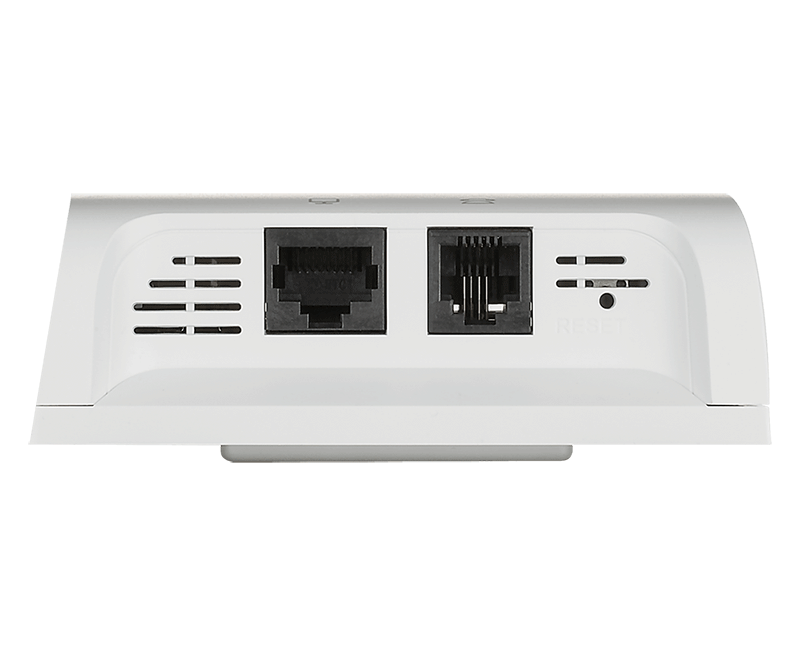

Dedicated Gigabit LAN port for a wired connection
Phone line port for voice communication
Load balancing to optimize performance between Access Points

Extensive Management

Powerful management, monitoring, and troubleshooting functionality with Nuclias Connect
Flexible access through web (HTTP), SSL, SSH, and Telnet
Multiple operation modes including Access Point, Wireless
Distribution System (WDS), WDS with Access Point, and Wireless Client
Wireless scheduling to manage access point activity

Trusted Security

WPA/WPA2 Personal/Enterprise encryption
64/128 bit WEP
MAC-based access filtering and WLAN partitioning
Captive Portal with industry-standard authentication
VLAN support for network segmentation
Built-in RADIUS server

Versatile Installation

Powered by IEEE 802.3af Power over Ethernet for remote installation
Small form-factor for easy placement

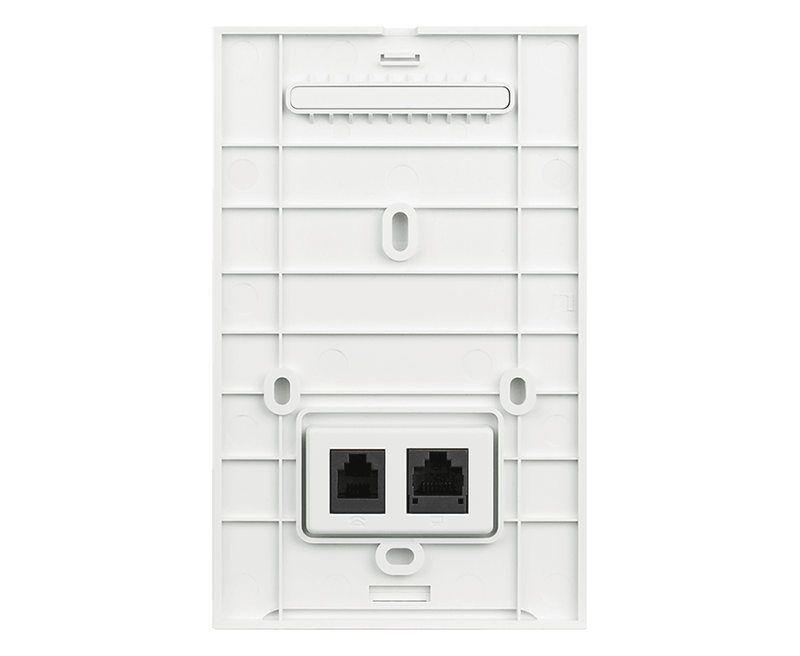

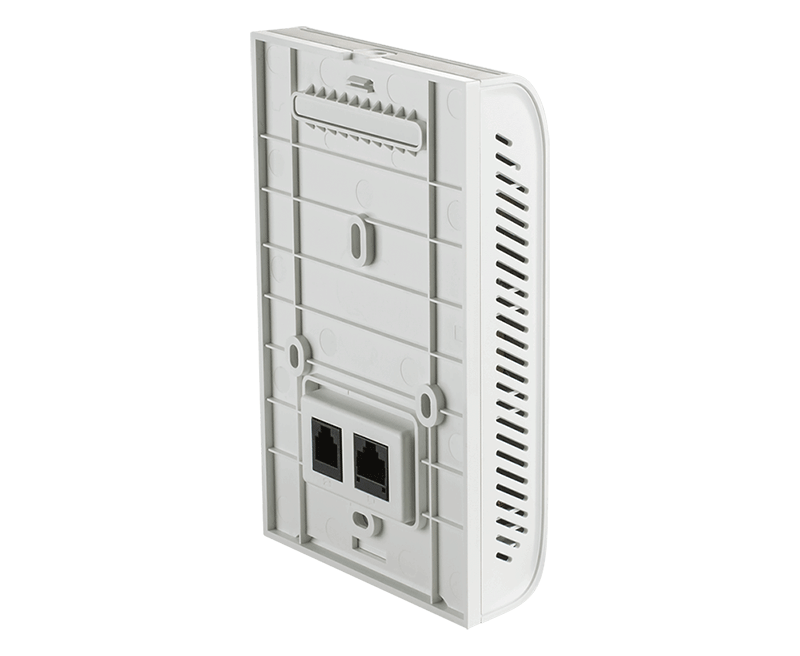

Wall-plate design for installation on Ethernet wall sockets
Compatible with US and EU power outlets
