D-Link DBA-1520P Nuclias Cloud-Managed AC1750 Wave 2 Access DBA-1520P/UDL

DBA-1520P Nuclias Cloud-Managed AC1750 Wave 2 Access Point

Nuclias Cloud Overview

Welcome to Nuclias Cloud, D-Link’s Cloud-managed networking solution for Small-to-Medium-Sized Businesses (SMB). Nuclias Cloud makes it easier to analyze, automate, configure, optimize, scale, and secure your network, letting you get on with your business.

Solution Benefits

1 / End-to-End Solution

Nuclias Cloud is a complete network solution. Tailored to SMBs by simplifying administration tasks across the network, and providing a wide variety of compatitable devices that can handle diverse business scenarios (indoors, outdoors, remote) with varying levels of traffic, eliminating the need to piece together equipment from different vendors.

2 / Simple Cloud Management

With Nuclias Cloud, no dedicated hardware controllers are needed. The centralized management platform can be accessed remotely via Browser or the app. Multi-site management allows SMBs to expand and monitor additional sites in other cities or countries around the world, all in one place. Cloud management also enables convenient batch configuration, scheduled firmware updates, auto channel management, and unlimited device scalability.

3 / Zero-Touch Deployment

Nuclias Cloud enables “plug & play” installation of new devices, and installation can be done by non-technical personnel. Simply unbox the device, connect it, download the configuration settings from the Cloud (or preconfigure before unboxing), and it’s operational — it’s that simple. It not only saves time and reduces the chances of error, it lowers the barriers of network expansion.

4 / Real-Time Analytics & Automated Reporting

The intuitive Nuclias Cloud management platform provides an instant overview of your network, with traffic measurable to the level of a single Access Point (AP). Not only does real-time analytics help catch irregularities, it also facilitates troubleshooting, while automated reporting simultaniously creates data-driven insights into customer and user behavior.

5 / Peace-of-Mind

Nuclias Cloud is built with the security of your business in mind. You are protected with a 99.9% Service-Level Agreement (SLA) that covers platform connectivity with operational failover in case Cloud connectivity is severed. End-to-End Encryption (WPA2/WPA3 Personal or Enterprise) for all network communications is employed via Websocket Over SSL, while 802.1X authentication with RADIUS server is also supported.

6 / Easy Administration

Nuclias Cloud utilizes a multi-tenant software architecture, enabling network administrators to grant local authority for local networks. Admins can create a guest network using one of D-Link’s APs 8 available SSIDs per radio. Along with multiple user authentication, specific access controls for each SSID is also available, enabling configuration of separate internal networks for different subnets. Direct discovery and AP provisioning can also be done over a shared L2/L3 network, allowing users to easily find APs and import profiles. Nuclias Cloud operates transparently, giving you the flexibility to deploy an AP anywhere in an NAT environment. Additionally, administrators can provide and manage a variety of distributed deployments, configuration settings and admin accounts for each AP.

Product Overview

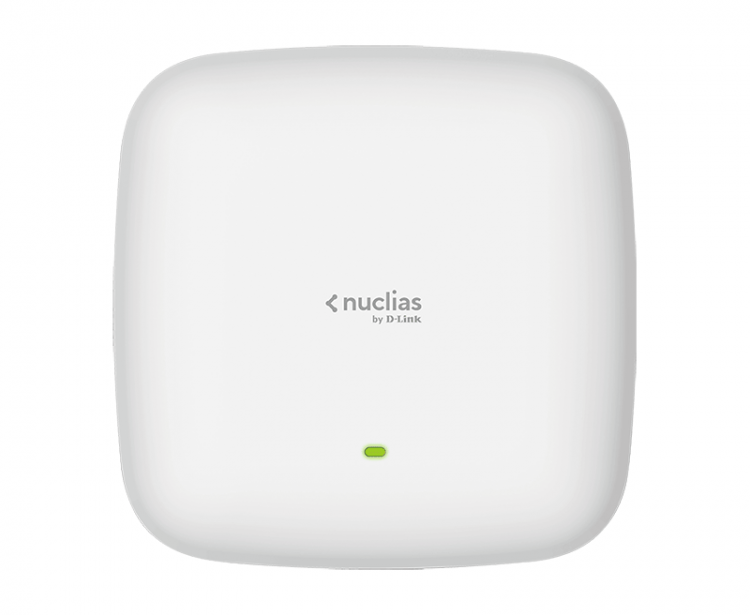

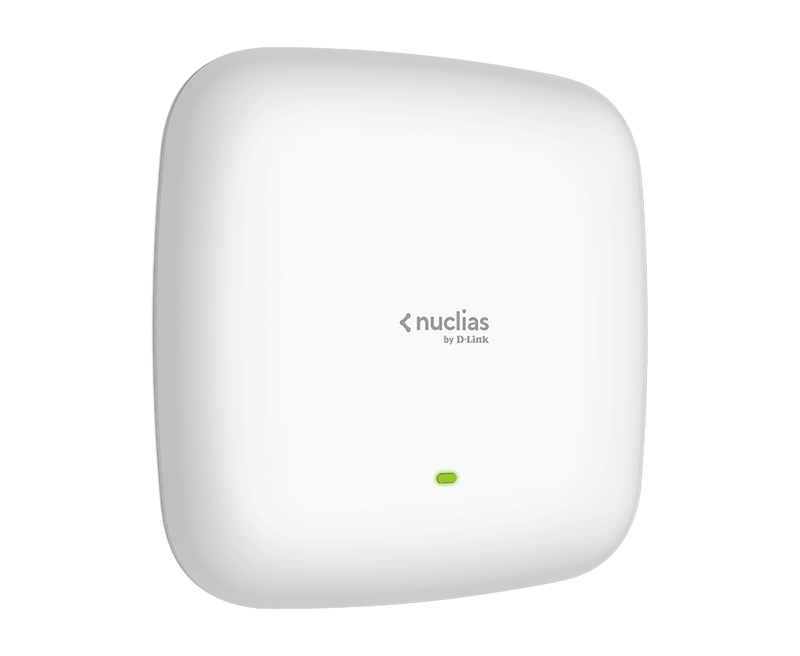

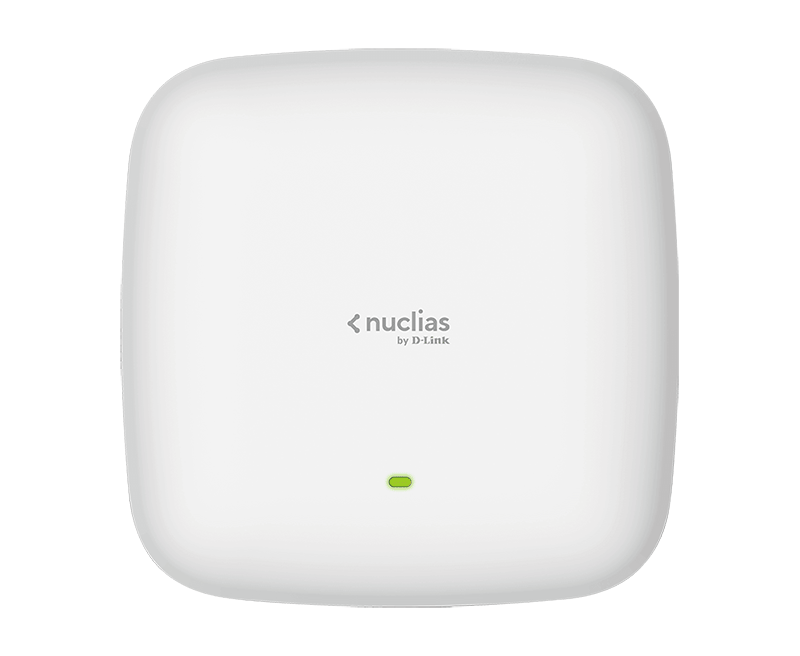

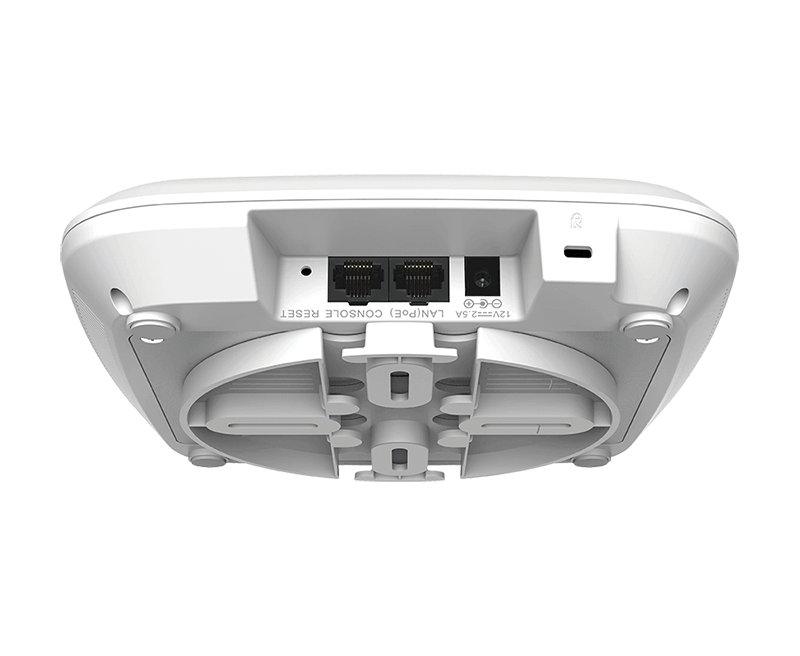

The DBA-1520P Nuclias Cloud-Managed AC1750 Wave 2 Access Point is deployed as a pre-managed, zero-configuration access point controlled through the D-Link Nuclias Cloud1. It is a best-in-class indoor access point designed specifically for enterprise environments. With next-generation 802.11ac Wave 2 dual-band concurrent 2.4 GHz and 5 GHz radios, the DBA-1520P offers high combined data rates to wireless clients allowing for lightning-fast access to bandwidth-intensive applications such as data, voice, and video streaming.

Best-in-class Built for Enterprise AP

IEEE 802.11ac Wave 2 wireless
Up to 1.75 Gbps2 throughput
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Integrated DHCP server
Allows a high number concurrent users

Power over Ethernet (PoE)

Supports IEEE 802.3at PoE
Convienient and efficient installation
Reduces installation and energy expenses
Flexibility to install the DBA-1520P in places that don’t
have access to electrical infastructure, such as the ceiling

Enterprise Security

Personal and Enterprise versions of WPA/ WPA2 (802.11i)
and WPA3-Personal
SSID/Guest/Station Isolation
IP/MAC address filtering
Captive Portal (Facebook, Google, Line, Weibo, E-mail
auth.)
Supports RADIUS client and Cipher negotiation

Wave 2 MU-MIMO

3 x 3 MU-MIMO Antenna with three spatial streams
Perfect for ‘Multi-User’, ‘Multi-Input’, ‘Multi-Output’
environments
Significantly reduces network congestion
Utilizes beamforming to direct signal at intended wireless
device
