D-Link DBA-3620P Nuclias Cloud-Managed AC1200 Wave 2 Access DBA-3620P/UDL

DBA-3620P Nuclias Cloud-Managed AC 1300 Wave 2 Outdoor Access Points

Nuclias Cloud Overview

Nuclias Cloud is D-Link’s complete, cloud-managed networking solution. It allows organizations with any level of IT resources the convenience of simple network deployment and configuration. Management and monitoring is as easy as ever. Troubleshooting is quick and painless. With Nuclias Cloud, scaling is accessible and can be done on an ad hoc basis. It’s professional-grade networking, without the need for networking professionals.

Solution Benefits

1 / End-to-End Solution

Nuclias Cloud is a complete Cloud-based WLAN infrastructure solution that provides end to end control over every network device, on any site, in your cloud-managed network. D-Link’s wide range of compatible devices offer a variety of capabilities at different price points. As a business driven solution, Nuclias includes a variety of enterprise tools. A customizable captive portal allows for a branded Wi-Fi experience, while reporting & analytics provide you the opportunity to better understand your network.

2 / Cloud Management

Cloud-based network management offers the flexibility and convenience you need. Admins can carry out various tasks using D-Link’s centralized management platform via browser or app, anywhere with an internet connection. Unlimited device and site scalability, along with multisite management, allow you to manage a worldwide network from a centralized location. Zero Touch Deployment does away with repetitive device configuration by remotely pushing settings to devices. Furthermore, devices can be managed in batches or individually for more precise control. These features, plus more, all consolidated on a unified platform make management as simple and as hassle-free as it should be.

3 / In-Depth Analytics & Automated Reporting

Nuclias Cloud delivers a deeper understanding of your network and its users through automated traffic analytics and status reports. Traffic can be viewed on a network-wide scale, or down to individual devices. Insights derived from these reports can be used to further drive business value.

4 / Peace-of-Mind

Nuclias Cloud carries a 99.9% reliability SLA (Service Level Agreement) that ensures a constant access to cloud services. Device opperation will not be interupted in the event that cloud services are unavailable. End to end encryption, role & privilege-based access control, amongst a host of other security features work together to preserve the integrity of your network. Automation capabilities provide an additional level of convenience, including control of network parameters, alerting, reporting and firmware updates.

5 / Ease of Use

Nuclias Cloud has an intuitive interface that is designed to maximize your productivity. Admins can access easy to grasp, at-aglance details of their network environment. Batch configuration and multitenancy support streamlines administrators’ work. Meanwhile, social-login, airtime fairness and bandwidth priority make life easier for users.

Product Overview

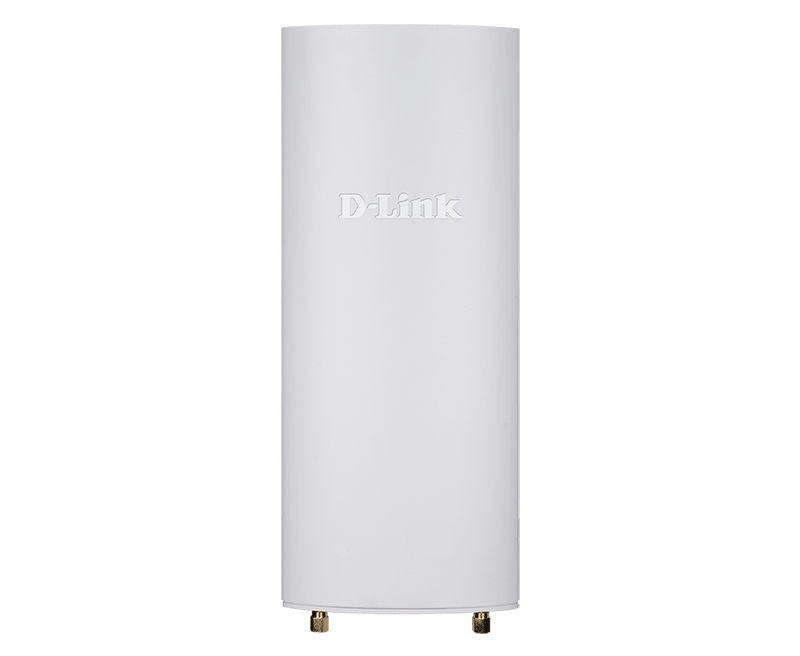

The DBA-3620P & DBA-3621P Nuclias Cloud Managed AC1200 WAVE 2 Outdoor Access Points are deployed as a pre-managed, zero-configuration access point controlled through the D-Link Nuclias cloud1. These are the best-in-class outdoor access points designed specifically for enterprise environments. With next-generation 802.11ac Wave 2 dual-band concurrent 2.4 GHz and 5 GHz radios, the DBA-3620P & DBA-3621P offers high combined data rates to wireless clients and wide-ranged wireless connectivity. With impressive protection rathing to defend against dust and water, the DBA 3620 & 3621 are equipped to withstand almost any outdoor environment.

Best-in-Class Built for Enterprise AP

IEEE 802.11ac Wave 2 wireless
Supports IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Integrated DHCP server
Supports Link Aggregation
Allows a high number concurrent users

Robust Build

The DBA-3620P holds an IP55 rating
Protected against any quantity of dust that could interfere with operation, but not fully dust tight
Completely protected against solid objects
Protection assured against water jets project by a nozzle (6.3mm) from any angle
The DBA-3621P holds an IP67 rating
Fully dust tight
Completely protected against solid objects
Protected against water immersion at a depth between 15 cm and 1 meter for maximum 30 minutes

Enterprise Security

Personal and Enterprise versions of WPA/ WPA2
(802.11i)/ WPA3
SSID/Guest/Station Isolation
IP/MAC address filtering
Captive Portal (Facebook, Google, Line, Weibo, E-mail authentication)
Supports RADIUS client and Cipher negotiation

11 AC Wave 2 MU-MIMO

2x MU-MIMO Antenna with two spatial streams
Perfect for ‘Multi-User’, ‘Multi-Input’, ‘Multi-Output’ environments
Significantly reduces network congestion
Utilizes beamforming to direct signal at intended wireless device
