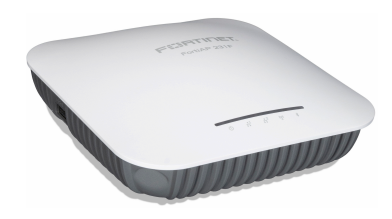

Fortinet FortiAP 231F (FAP-231F)

Expected dispatch on : 0November 22 - 23

Part No FAP-231F

Indoor wireless AP: Tri radio, Internal antenna, 2 X GE RJ45 ports

2x2 MIMO IEEE 802.11ac Wave 2
574 Mbps throughput (2.4 GHz)
1.2 Gbps throughput (5 GHz)
1x PoE-PD (IEEE 802.3at PoE+, 17W)
2x 1-GbE-RJ45

Quote

Details

Fortinet FortiAP 231F (FAP-231F)

Hardware Type: Indoor AP
Number of Radios: 3 + 1 BLE
Number of Antennas: 3 Dual band Internal Wi-Fi + 1 BLE/ZigBee
Antenna Type and Peak Gain: PIFA antenna
Dual band: 4.5dBi for 2.4Ghz and 5.5dBi for 5GHz
BLE antenna 4.0dBi at 2.4GHz band
Frequency Bands (GHz): 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces: 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE): 1 x 802.3at PoE default
1 x 802.af PoE no USB function
Simultaneous SSIDs: Up to 16 (14 if background scanning enabled)
SSID Types Supported: Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity: Up to 512 clients per radio (Radio1 and Radio2)
Cellular Co-existence: Yes
Reset Button: Yes
LED Off Mode: Yes
