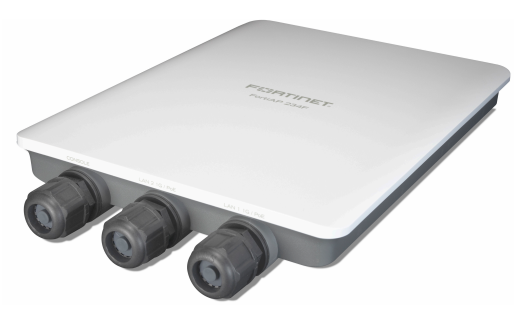

Fortinet FortiAP 234F (FAP-234F)

Be the first to review this product

Expected dispatch on : 0November 22 - 23

Part No FAP-234F

Outdoor wireless AP: Tri radio, Internal antenna, 2 x GE RJ45 ports

Maximum throughput (2.4 GHz): 574 Mbps
Maximum throughput (5 GHz): 1201 Mbps
Maximum number of configured SSIDs: 16
Wireless clients per Wi-Fi radio: up to 512
Wall/ceiling/T-Rall mounting kit

Quote

Details

Fortinet FortiAP 234F (FAP-234F)

Hardware Type: Outdoor AP
Number of Radios: 3 + 1 BLE
Number of Antennas: 2 dual band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee
Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces: 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE): 1 x 802.3at PoE default
Operational modes: powered by 2 x 802.af PoE - full functionality support; 1 port 802.3af - operates in reduced power (17dBm) R1 & R2
Simultaneous SSIDs: Up to 16 (14 if background scanning enabled)
OFDMA: Yes (UL and DL)
Spatial Reuse (BSS Coloring): Yes
UL MU-MIMO 802.11ax mode: Yes
DL-MU-MIMO: Yes
Enhanced Target Wake Time (TWT): Yes
ZeroWait DFS/Agile DFS: Yes
Power Supply 802.3at PoE: GPI-130; ships with PoE Injector (reset functionality)
