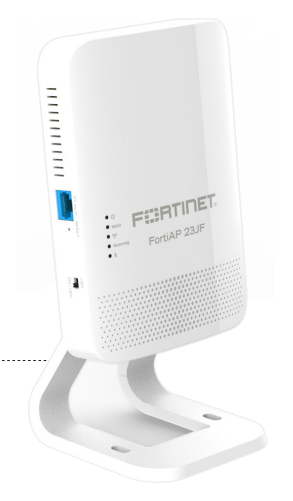

Fortinet FortiAP 23JF (FAP-23JF)

Expected dispatch on : 0November 22 - 23

Part No FAP-23JF

Indoor wallplate AP: Tri radio, Internal antenna, 4 x GE RJ45 ports

2x2 MIMO IEEE 802.11ac Wave 2
574 Mbps throughput (2.4 GHz)
1.2 Gbps throughput (5 GHz)
1x PoE-PD (IEEE 802.3at PoE+, 31W (17.5W w/o PSE out / 31W with PSE out))
1x PoE-PSE (IEEE 802.3af PoE, 17W)
6x 1-GbE-RJ45

Quote

Details

Fortinet FortiAP 23JF (FAP-23JF)

Hardware Type: Indoor walljack/desktop AP
Number of Radios: 3 + 1 BLE
Number of Antennas: 4 single band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee
Antenna Type and Peak Gain: PCB antenna
Dual band: 4.0 dBi in 2.4 GHz band and 4.0 dBi in 5 GHz band
BLE antenna: 3.5 dBi in 2.4 GHz band
Frequency Bands (GHz): 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
SSID Types Supported: Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity: Up to 512 clients per radio (Radio1 and Radio2)
Cellular Co-existence: Yes
LED Off Mode: Yes
OFDMA: Yes
Spatial Reuse (BSS Coloring): Yes
UL MU-MIMO 802.11ax mode: Yes
DL-MU-MIMO: Yes
Enhanced Target Wake Time (TWT): Yes
ZeroWait DFS/Agile DFS: No
