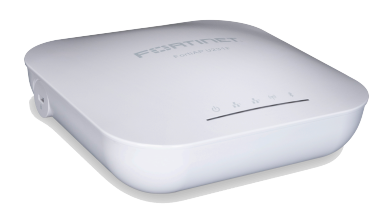

Fortinet FortiAP U231F (FAP-U231F)

Hardware Type: Indoor AP
Number of Radios: 3 + 1 BT/BLE
Number of Antennas: 4 Dual band WiFI + 2 WiFi+Dual band Scanning + 1 Single band 2.4GHz BLE/ZigBee
Antenna Type and Peak Gain: PIFA antenna
Bluetooth Low Energy (BT/BLE) Radio: Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces: 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE): 1 x 802.3at PoE default 1 x 802.af PoE with reduce TX power and no USB function
Simultaneous SSIDs: Up to 24 (21 if background scanning enabled)
EAP Type(s): EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
Transmit Beam Forming (TxBF): Yes
Low-Density Parity Check (LDPC) Encoding: Yes
Rogue Scan Radio Modes: Background, Dedicated
WIPS / WIDS Radio Modes: Background, Dedicated (recommended)
Power Supply: SP-FAP200-PA-XX
Power Consumption (Maximum): 18.5 W
