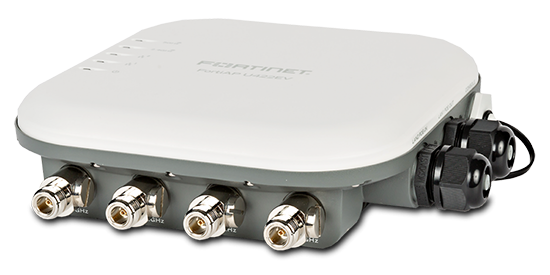

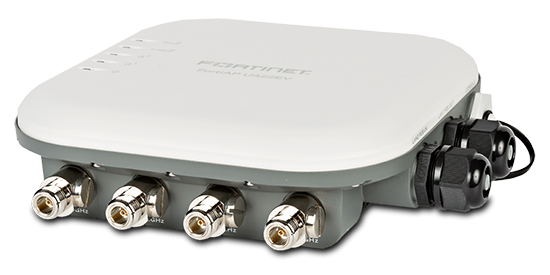

Fortinet FortiAP U422EV (FAP-U422EV)

Hardware Type: Outdoor AP
Number of Radios: 2 + 1 BT/BLE
Number of Antennas: 8 External + 1 BT/BLE Internal
Antenna Type and Peak Gain: Dipole: 5 dBi for 2.4 GHz, 7 dBi for 5 GHz
Frequency Bands (GHz)*: 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities: 2.4 GHz b/g/n (4x4:4 stream) 20/40 MHz (64 QAM)
Radio 2 Capabilities: 5 GHz a/n/ac (4x4:4 stream) 20/40/80/160 MHz (256 QAM) (also supports 1024 Turbo QAM)
Maximum Data Rate: Radio 1: up to 600 Mbps
Radio 2: up to 3,466 Mbps
Bluetooth Low Energy (BT/BLE) Radio: Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces: 2x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port
802.11ac Wave 2 MU-MIMO: Yes
Transmit Beam Forming (TxBF): Yes
Low-Density Parity Check (LDPC) Encoding: Yes
Maximum Likelihood Demodulation (MLD): Yes
Power Supply: Proprietary PoE injector or GPI-130
Power Consumption (Max.): 22 W
