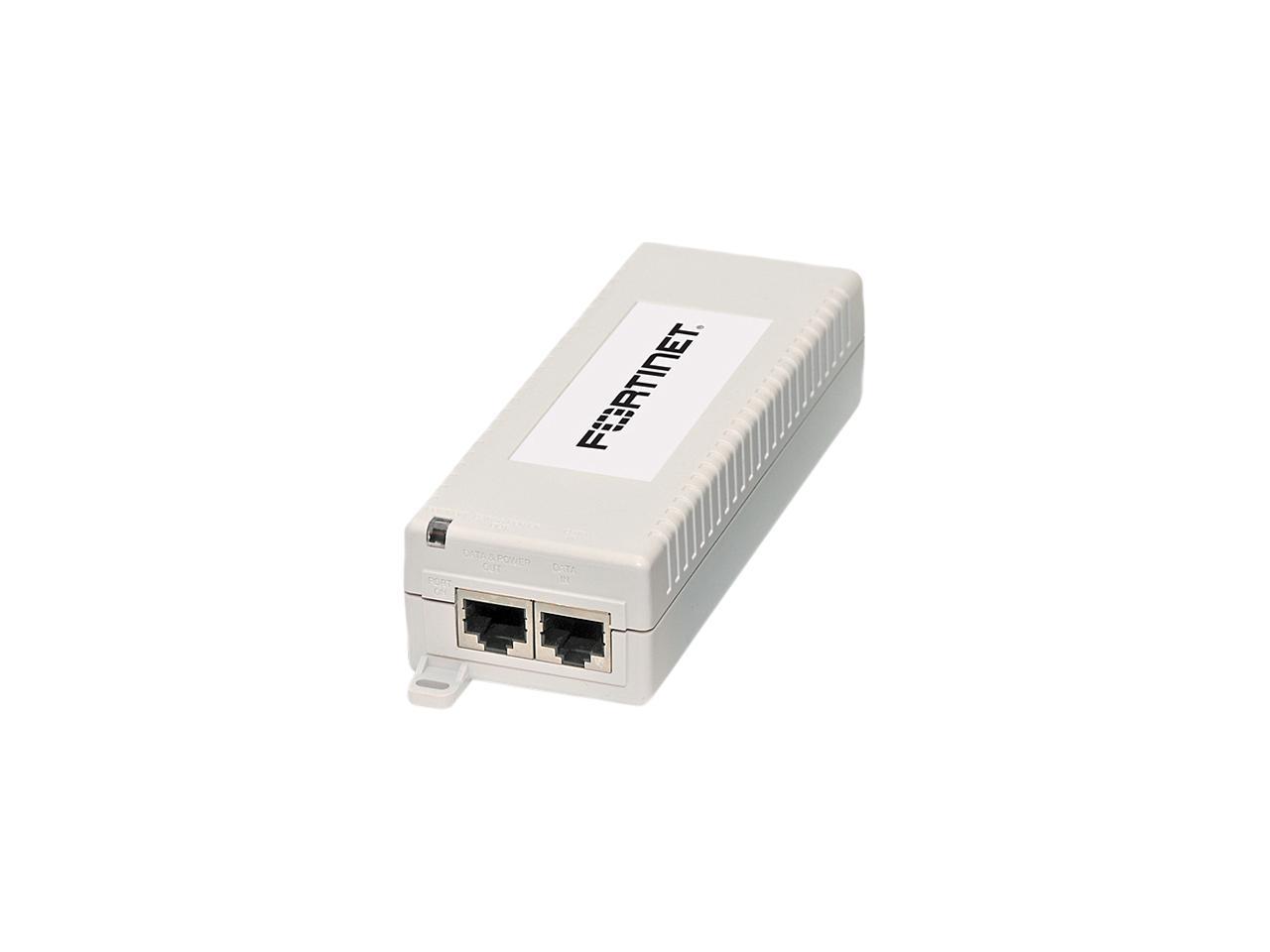

Fortinet GPI-115 Power over Ethernet Injector

Be the first to review this product

Expected dispatch on : 0December 23 - 24

Part No GPI-115

GigE 802.3af power supply

Power distribution for FortiAP access points
48V DC power for 802.3af standard and pre-standard end-terminals
Ideal for low density distributed retail and branch locations
Support for Fast Ethernet and GE data transmissions
Economical switch substitute for PoE in small deployments
Plug and Play saves time and reduces costs

Quote

Details

Fortinet GPI-115 Power over Ethernet Injector

Number of Ports: 2 (1 for data in, 1 for data and power out)
Pass-through Data Rates: 10/100/1000 Mbps
Maximum Cable Run: 100 meters or 330 feet which corresponds to Ethernet limits
LED Indicator: Power On/Off and overload conditions
Connectors: Shielded RJ-45, EIA 568A and 568B
Heat Dissipation: 13 BTU/h (at 240V AC)
Dimension: 1.28" x 2.09" x 5.50"
Weight: 0.44 lb.
Regulatory Compliance: IEEE 802.3af (PoE), RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emission & Immunity: FCC Part 15, Class B, EN 55022 Class B, EN 55024, VCCI
Safety: UL/cUL per IEC 60950-1, GS Mark per IEC 60950-1
