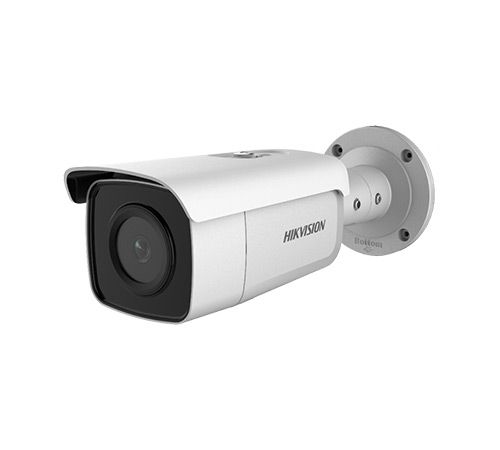

Hikvision DS-2CD2T85G1-I5 4K Powered-by-DarkFighter Fixed Bullet Network Camera
December 04 - 05
High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Robust structure design with full metal materials.
Details
Hikvision DS-2CD2T85G1-I5 4K Powered-by-DarkFighter Fixed Bullet Network Camera
Image Sensor : 1/2" Progressive Scan CMOS
Min. Illumination : Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed : 1/3 s to 1/100,000 s
Slow Shutter : Yes
Wide Dynamic Range : 120dB
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Focus : Fixed
Lens Type : 2.8/4/6 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°, 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°, 6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
Aperture : F1.6
Lens Mount : M16
IR Range : -I5: Up to 50 m,-I8: Up to 80 m
Wavelength : 850 nm
Max. Resolution : 3840 × 2160
Main Stream : 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream : 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression : Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Main Profile/High Profile
H.265 Type : Main Profile
H.264+ : Main stream supports
H.265+ : Main stream supports
Region Of Interest (ROI) : Support 1 fixed region for main stream and sub-stream separately
Simultaneous Live View : Up to 6 channels
API : ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host : Up to 32 users,3 levels: Administrator, Operator and User
Network Storage : Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Client : iVMS-4200, Hik-Connect, Hik-Central
Web Browser : Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger : Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch : Day/Night/Auto/Schedule
DNR : 3D DNR
Image Enhancement : BLC/3D DNR/HLC
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
On-Board Storage : Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset : Yes
Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
More Information
Part No | DS-2CD2T85G1-I5 |
---|---|
Country of Manufacture | China |
Brand | Hikvision |
