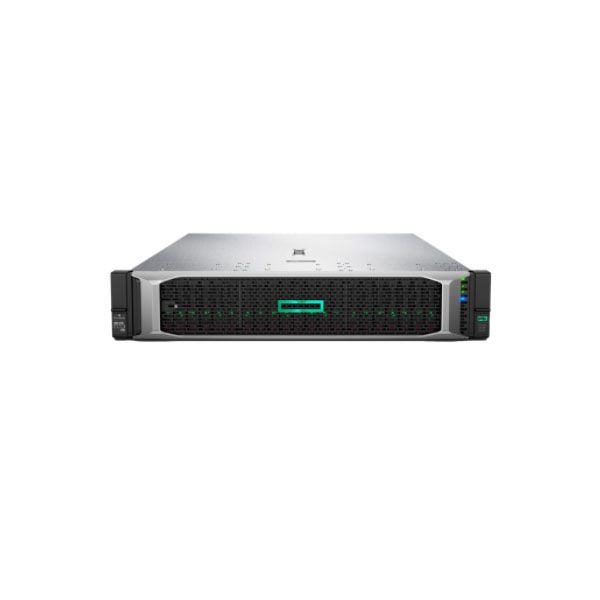

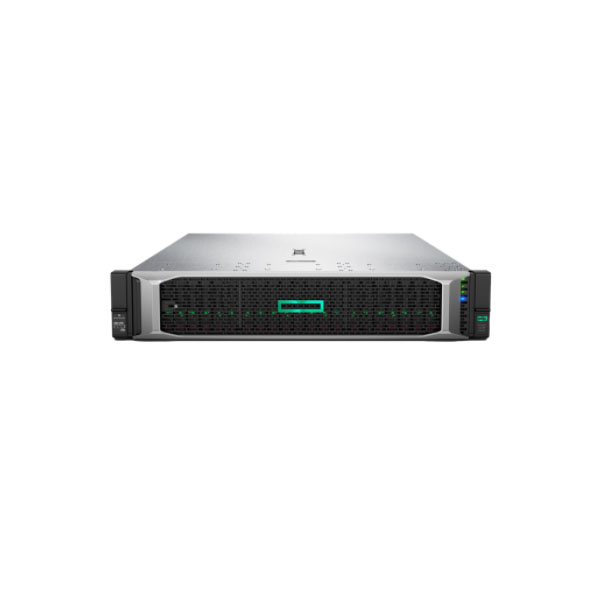

HPE P23465 B21 ProLiant DL380 Gen10 4208 1P 32GB R P408i a NC 8SFF 500W PS Server

What's New

• Defend applications and data before your server is built with the new HPE Trusted Supply Chain offering.
• Supporting additional second generation Intel® Xeon® Scalable processor family offerings.
• Increased Single-Width GPU Density with up to 7 NVIDIA Tesla T4 16GB Computational Accelerators or 7 Xilinx Alveo U50 Accelerators supported in a standard-depth 2U rack form factor
• Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
• HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage using Intel® Optane™ DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.³
• iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.

Technical Specifications:

Processor Core Available8, per processor

Processor Cache Installed11 MB L3

Memory TypeHPE DDR4 SmartMemory

NVDIMM TypeHPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

NVDIMM RankSingle rank

NVDIMM Capacity16 GB

Network Controller1 HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter (665240-B21) plus optional stand-up card *NOTE: No embedded networking

Remote Management SoftwareHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)

System Fan Features4 single-rotor, standard fans included

Power Supply Type1 HPE 500W Flex Slot Universal Hot Plug Low Halogen

Expansion Slots8, for detailed descriptions reference the QuickSpecs

Storage Controller1 HPE Smart Array P408i-a/2GB with Smart Storage Battery and 1 HPE Smart Array S100i

Warranty Standard Statement3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Processor NameIntel® Xeon® Scalable 4208 (8 core, 2.1 GHz, 11 MB, 85W)

Processor Number1

Processor Speed2.1 GHz

Standard Memory32 GB (1x 32GB) RDIMM

Hard Drive Number (included)None ship standard, 8 SFF drives supported

Optical Drive TypeOptional

SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Form Factor2U

Weight (imperial)32.6 lb

Weight (metric)14.76 kg

Product Dimensions (imperial)17.54 x 28.75 x 3.44 in

Product Dimensions (metric)44.55 x 73.03 x 8.74 cm
