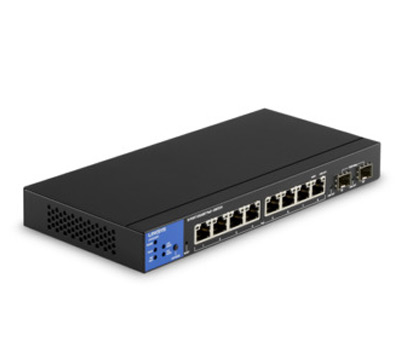

Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W LGS310MPC-EU
December 22 - 23
Integrated Power over Ethernet Plus (110W)
Gigabit SFP Uplink Ports (2)
Advanced Network Security and QoS
Inclusive of 5% VAT
Details
Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W LGS310MPC-EU
Routing: Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
Ports: 8 Gigabit Ethernet, 2 Gigabit SFP
Memory: 256MB
LEDs: Power, Fault, PoE Max, LAN Mode, PoE Mode
Forwarding Rate: 14.88 Mpps
Switching Capacity: 20 Gbps
MAC Address Table Size: 8K
Jumbo Frame (FE, GE): 10Kbytes
Power Consumption: 133.77W
Power Dedicated to PoE+: 110W
Power Input: 100–240V, 50–60 Hz, 2.2A
Power Saving: EEE
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Operating Humidity: 10 to 90% RH
Storage Humidity: 5 to 95% RH (non-condensing)
Spanning Tree: IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Link Aggregation: IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
VLAN: Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Number of VLANs Supported: 256 active VLANs (4,096 range)
Auto Voice VLAN: Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping: IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention: Head of line (HOL) blocking prevention
Port Mirroring: Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Security Features: 802.1x Radius authentication, DHCP snooping, IP-MAC binding, Port Security (256 max entries per port), DOS Attack Prevention, Port Isolation (Protected Ports)
Storm Control: Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Quality Of Service: 8 hardware queues, Strict, Weighted Round Robin (WRR), Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Access Control: Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
RMON: Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface: HTTP, HTTPS
Other Management: Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
SNMP: Version 1, Version 2c, Version 3
Firmware Upgrade: Web Browser (HTTP/HTTPS)
Rate Limiting: Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
More Information
Part No | LGS310MPC-EU |
---|---|
GTIN-/EAN-Code | 4260184670642 |
Dimensions Length (inch) | 240 |
Dimensions Width (inch) | 105 |
Dimensions Height (inch) | 27 |
Country of Manufacture | China |
Brand | Linksys |
Switches | PoE |
Port Count | 1 to 10 |
