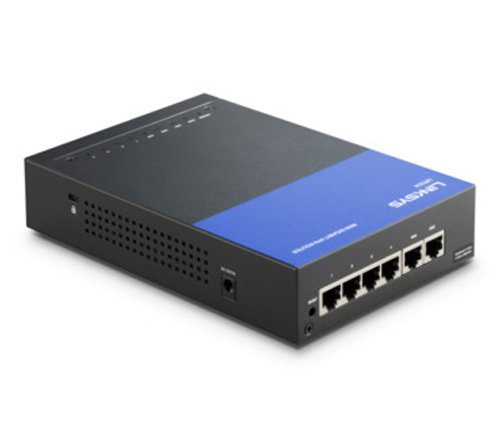

Linksys LRT214 Business Gigabit VPN Router LRT214-UK
November 22 - 23
Open VPN Server Support
Integrated Firewall
802.1q Support
Intuitive Web Administrative Interface
EasyLink VPN for simple VPN Setup
Superior IP Sec Throughput
Details
Linksys LRT214 Business Gigabit VPN Router LRT214-UK
Firewall: SPI (Stateful Packet Inspection), DoS (Denial of Service) prevention, Schedule-based access rules (50), Web filtering (URL and keyword blocking), Block Java, cookies, ActiveX, http proxy servers, IGMP proxy, UPnP
Site-to-Site VPN: 50 IPsec site-to-site tunnels, Split DNS over site-to-site tunnel, VPN backup for site-to-site tunnel, DPD (Dead Peer Detection), Keep alive, NAT-traversal
Remote Access VPN: OpenVPN, PPTP, Client-to-Site IPsec
NAT: Gateway mode, Router mode
NAPT: 1-to-1 NAT (10), Port forwarding (30), Port triggering (30), Port address translation (30), DMZ host
DMZ Port: DMZ Range, DMZ Subnet
802.1q VLAN: 5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)
DHCP Server: Supports multiple address pools, one pool per VLAN subnet
DNS: DNS Proxy, DNS Local Database
Monitoring/Alerting: Syslog, Email Alert, SNMP Trap
WAN Connection: Dynamic IP, PPPoE, PPTP, L2TP, Static IP, Transparent Bridge
DDNS: Dynamic DNS (DynDNS, 3322), NOIP, ChangeIP
Routing: Static, Routing Information Protocol (RIP) v1, v2 and RIP for IPv6 (RIPng)
IPv6: DHCPv6-PD, 6to4, Router Advertisement
Maintenance: Configuration backup and restore, Dual configurations (startup and mirror), Firmware upgrade, Diagnostics (ping and DNS name lookup), Reboot, Factory defaults
Status and Statistics: WAN connection status, VPN tunnel/user status, Port status and statistics
Ports: One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android), reset button
LEDs: System, DIAG, WAN, DMZ. VPN, LAN 1–4
Port Management: 10/100/1000 Mbps, Auto negotiation, Half/Full duplex
Performance: IPsec VPN throughput: 110 Mbps, Maximum NAT throughput: 900 Mbps
Maximum concurrent connections: 30,000
Power: 12V 1A
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature: 0ºC to 70ºC (32ºF to 158ºF)
Operating Humidity: 10% to 85% non-condensing
Storage Humidity: 5% to 90% non-condensing
Mounting: Wall, Desktop
VLAN Trunking: VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches.
Security Lock: Kensington Lock
Regulatory Compliance: FCC Class B, CE Class B
Bandwidth Management: Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priority
LEDs: System, DIAG, WAN, DMZ. VPN, LAN 1-4
Reset Button: Yes
UPnP: Yes
More Information
Part No | LRT214-UK |
---|---|
Dimensions Length (inch) | 191 |
Dimensions Width (inch) | 130 |
Dimensions Height (inch) | 40 |
Country of Manufacture | China |
Brand | Linksys |
